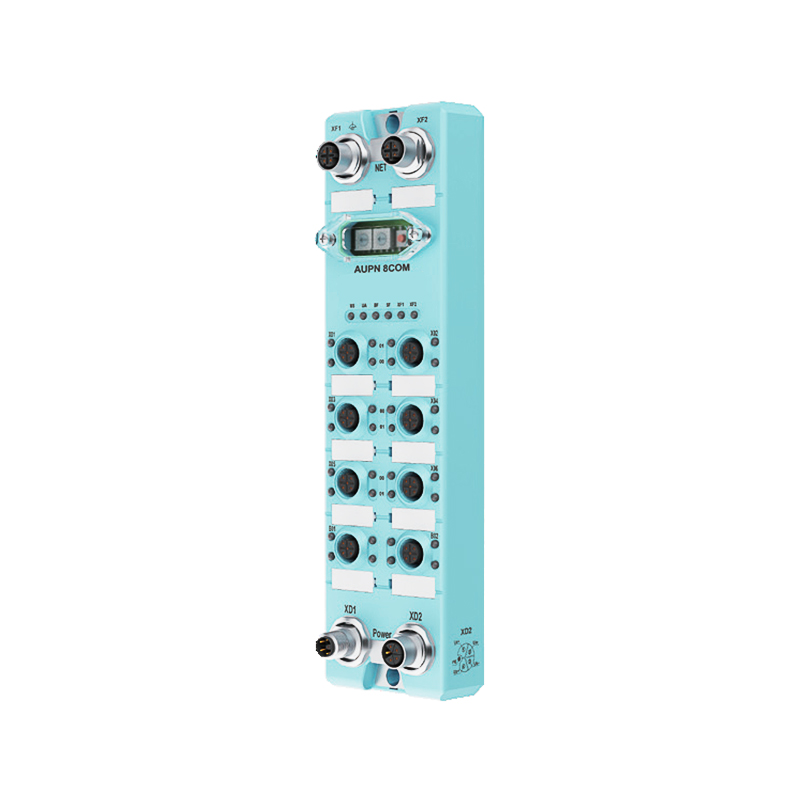

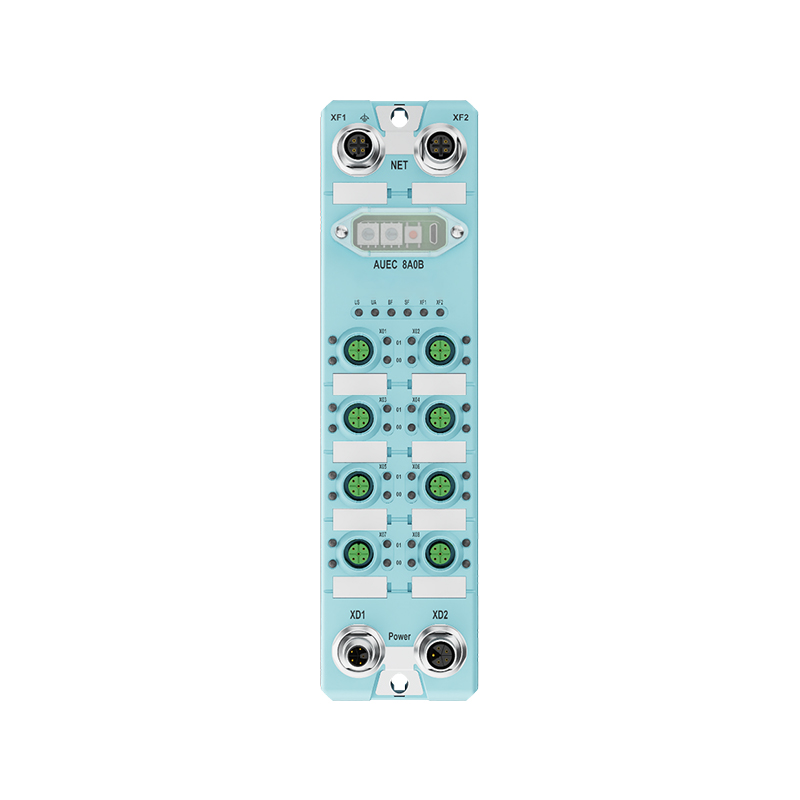

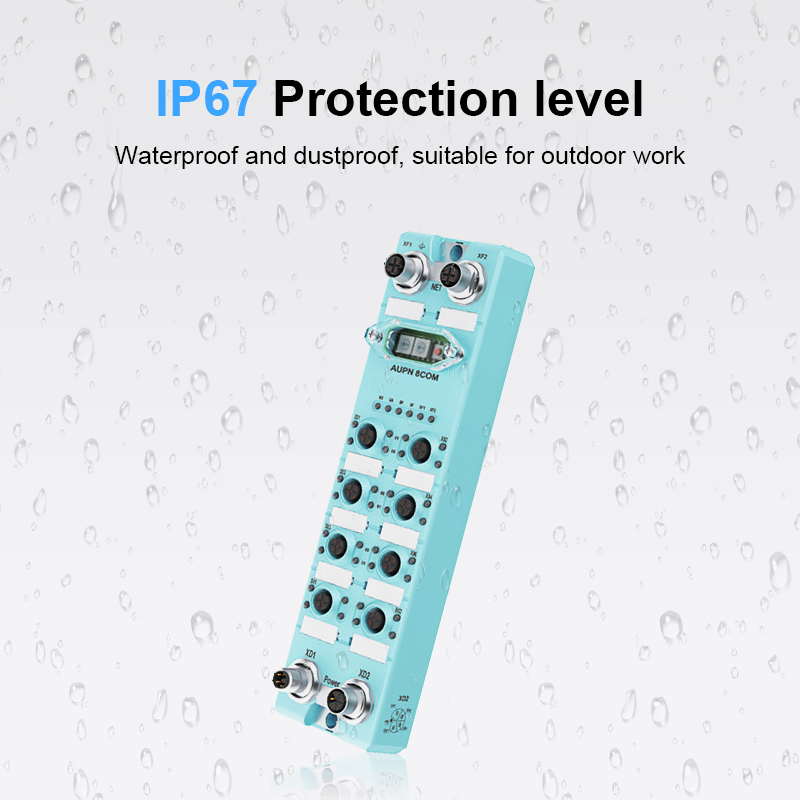

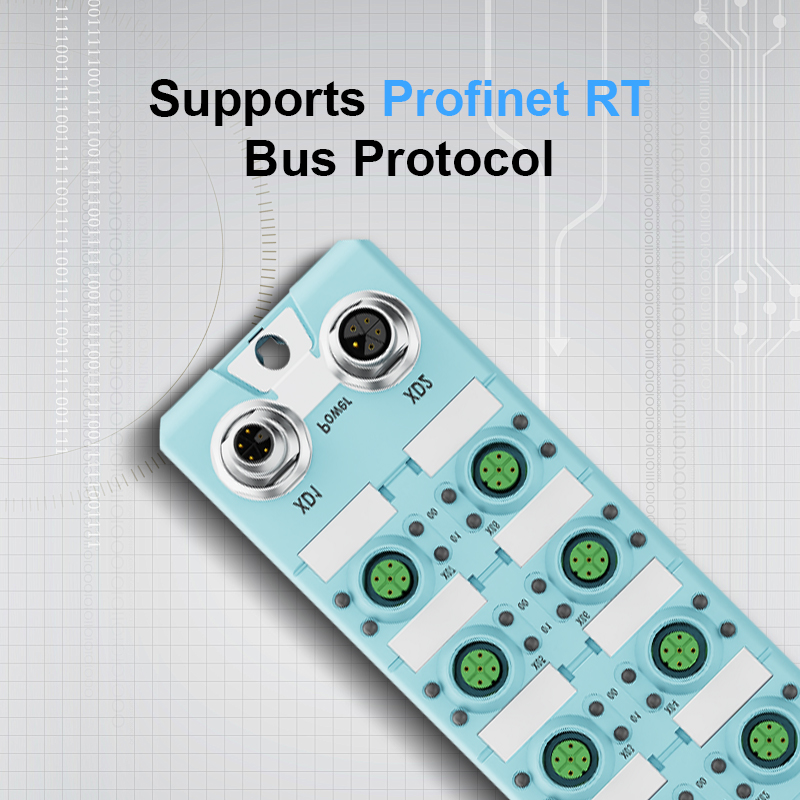

CF325 Profinet Industrial Gateway
-Support Modbus-RTU and Freeport communication protocols

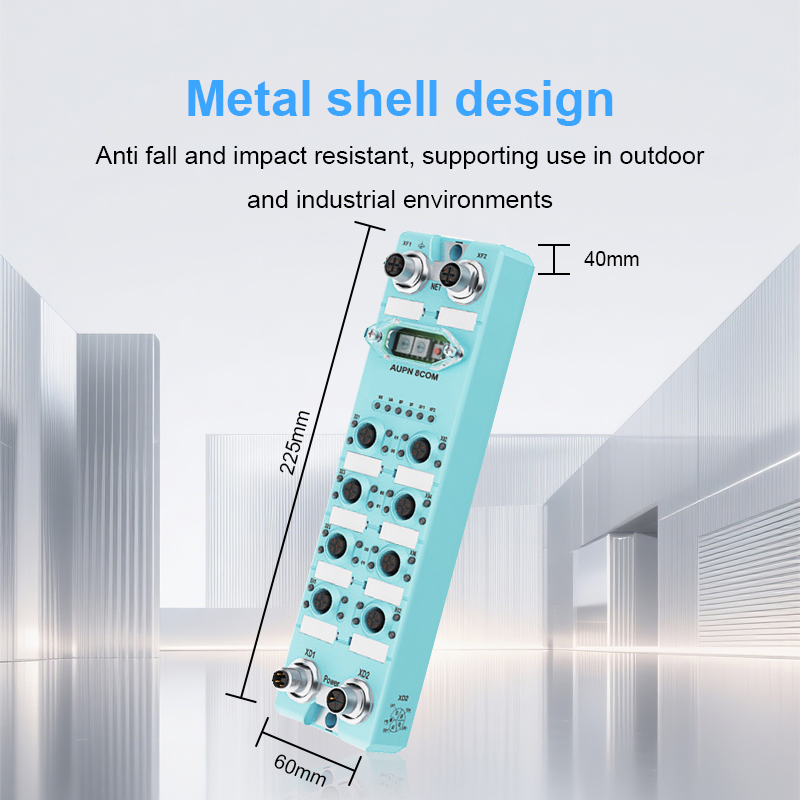

-Metal shell design, serial port parameters can be customized through configuration files
-8 RS485 interfaces, with baud rate up to 115.2Kbps
Product Specifications
|
Product Model |
|
Bus transfer |
||
|
model |
CF325 |
Communication Protocol |
Profinet-RT |
|
|
describe |
8-way RS485 serial interface Profinet-RT bus protocol |
Working Mode |
Automatic negotiation mechanism, automatic flip function |
|
|
Power supply |
Transfer rate |
10/100 Mbps |
||
|
Operating voltage |
24 VDC (18~30VDC) |
Address allocation |
Profinet standard, DCP |
|
|
Module current consumption |
Maximum 200mA |
Topology Function |
support |
|
|
System and input signal power supply |
Us, not exceeding 8A |
Ring redundancy function (MRP) |
support |
|
|
Auxiliary power supply |
Ua, not exceeding 8A |
General Data |
||
|
Electrical isolation |
Us/Ua: 24V isolation, 0V isolation |
Protection level |
IP67 (IP65 can be customized) |
|
|
Interface Type |
Temperature range |
Operating temperature: -20~80°C (storage temperature: -40~85°C) |
||
|
Power supply |
2* L-code 5-pin male end (input) + female end (output) |
Installation |
2-hole screw fixation |
|
|
Bus communication |
2 * M12 D-code 4pin, female end |
Indicator Light Description |
||
|
Signal Connection |
8 * M12 B-code 5pin, female |
US (green) |
System power indicator: Steady on: Normal power supply Off: No power supply or abnormal power supply |
|
|
Number of expansion modules |
No extension support |
UA (green) |
IO power indicator: Steady on: Ua is powered normally Off: Ua is not powered or the power supply is abnormal. |
|
|
Serial port support protocol |
Modbus-RTU master, slave, free port mode |
BF (red) |
Steady on: Communication abnormality Flashing: Configuration superbyte (2048 bytes) Off: PN communication is normal |
|
|
Check digit |
No parity, odd parity, even parity |
SF (red) |
Steady on: Ua is not powered or the power supply is abnormal Off: No error |
|
|
Stop bits |
1, 2 |
XF1 |
XF1 port communication indicator light: the yellow light is on, indicating that the XF1 port communication is connected. |
|
|
Data bits |
7, 8 |
XF2 |
XF2 port communication indicator light: the yellow light is on, indicating that the XF2 port communication is connected. |
|
|
Data transfer rate |
1200bps, 2400bps, 4800bps, 9.6Kbps, 19.2Kbps, 38.4Kbps, 57.6Kbps, 15.2Kbps |
Indicator lights for X01~X08 (Green 01 ) |
COM serial port receiving data indicator: Flashing: data is being received Off: No data received |
|
|
|
Indicator lights for X01~X08 (Green 00 ) |
COM serial port receiving data indicator: Flashing: data is being received Off: No data received |
||

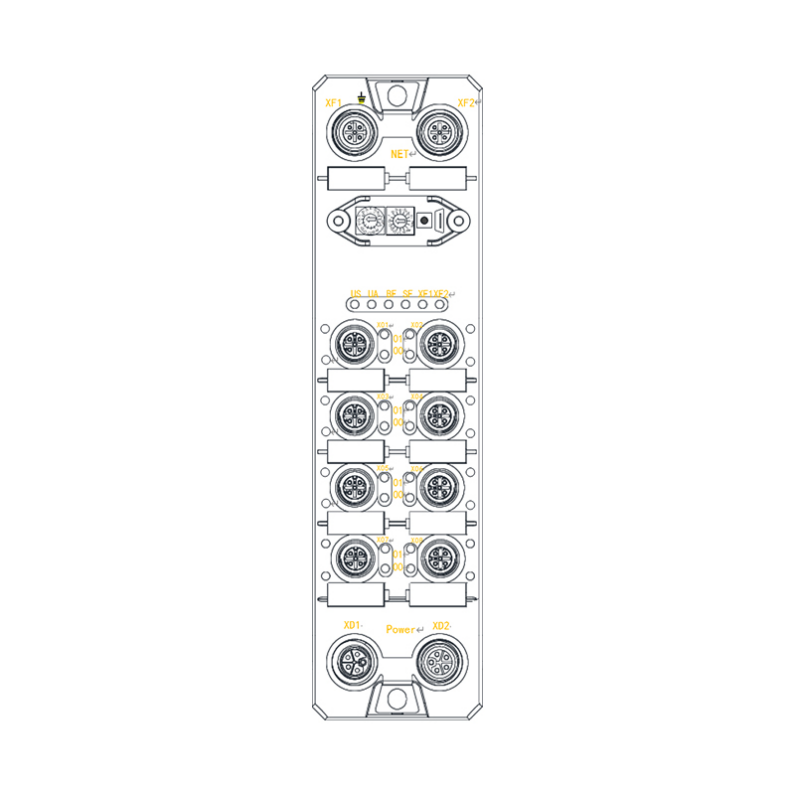

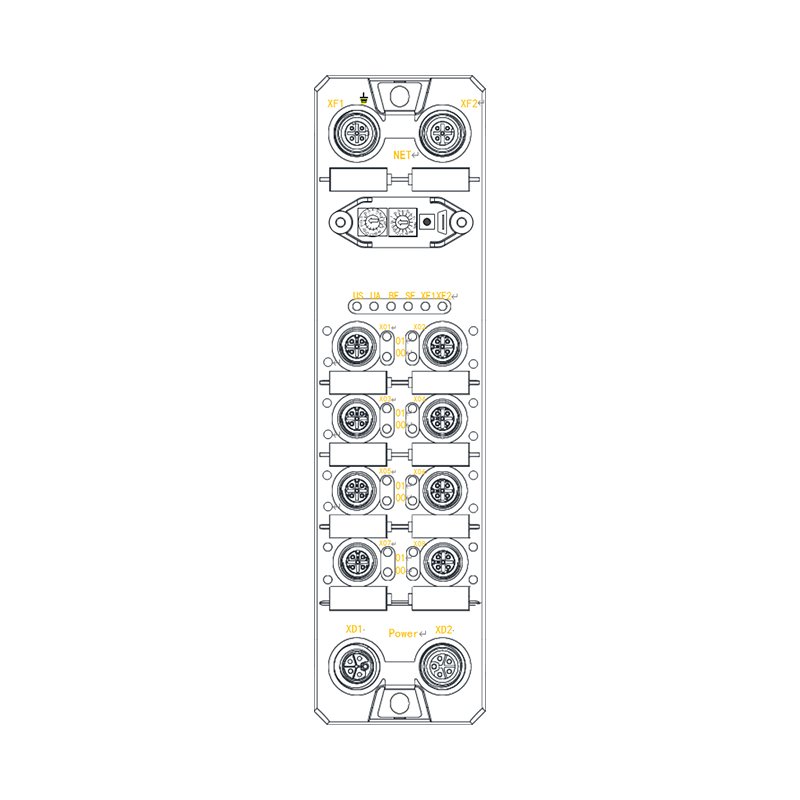

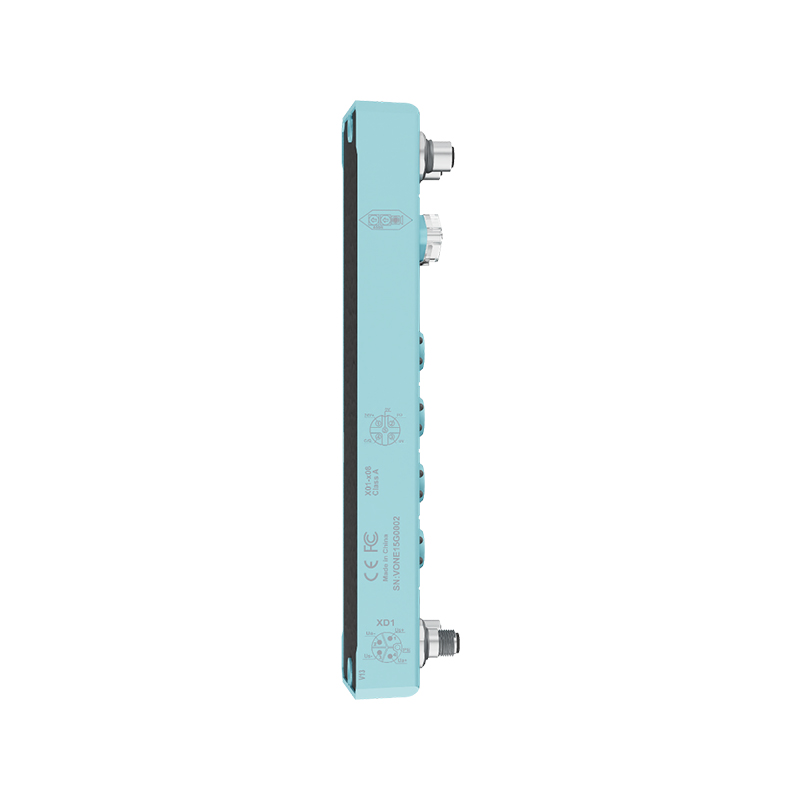

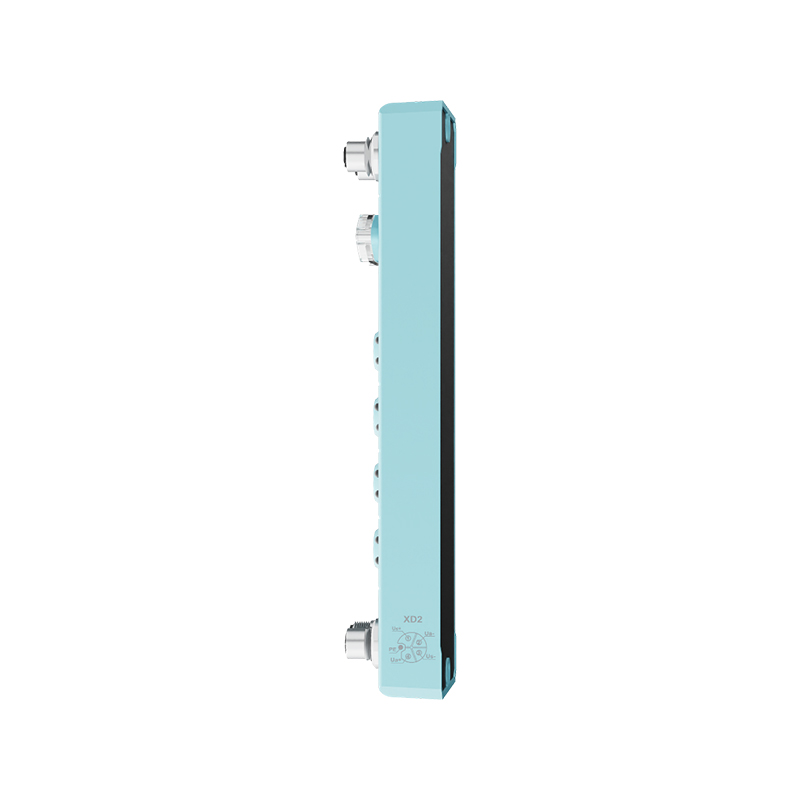

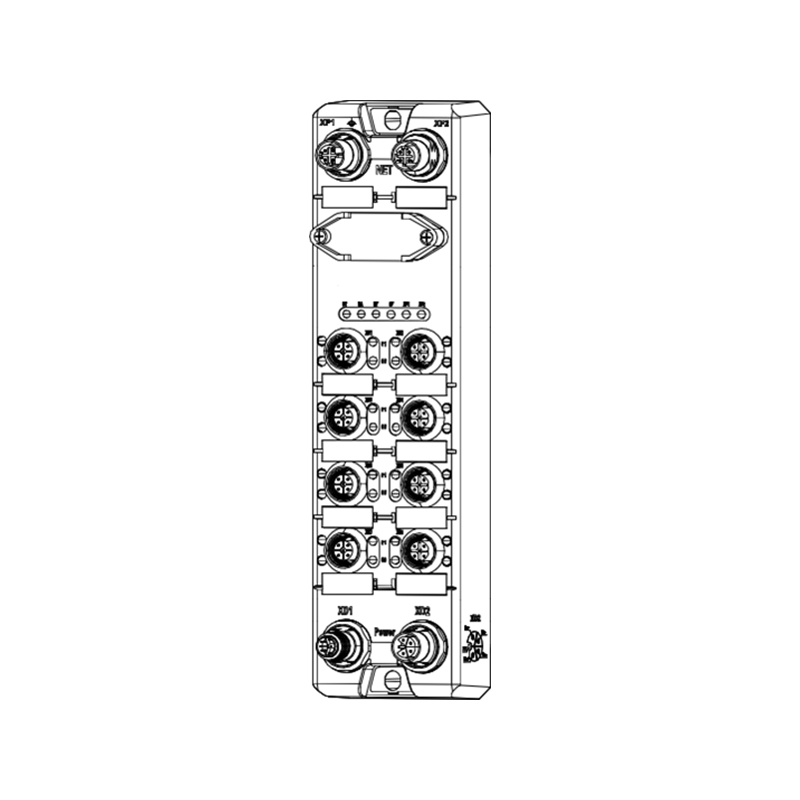

Module panel diagram

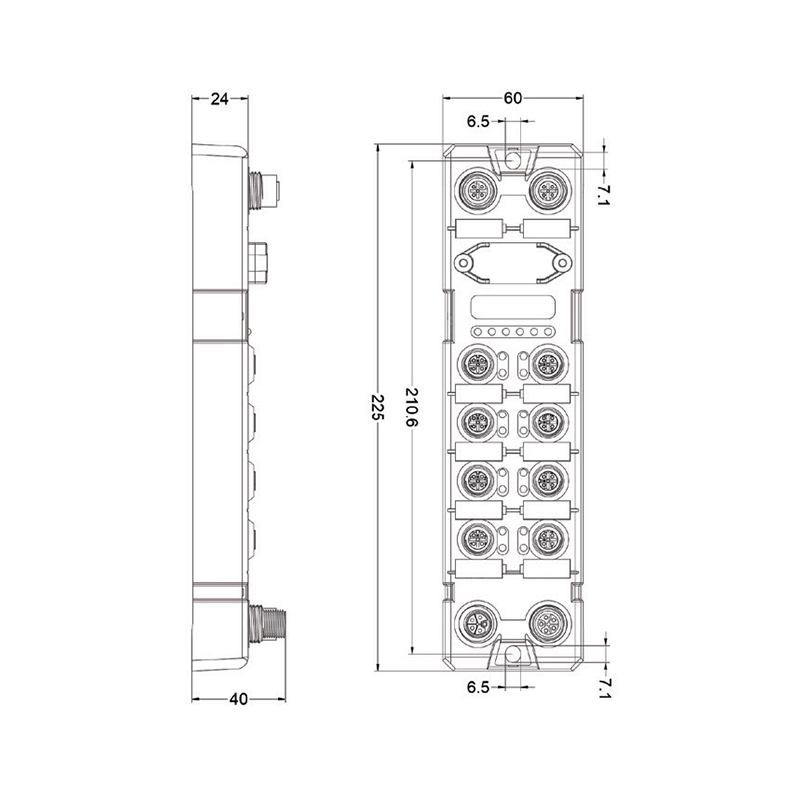

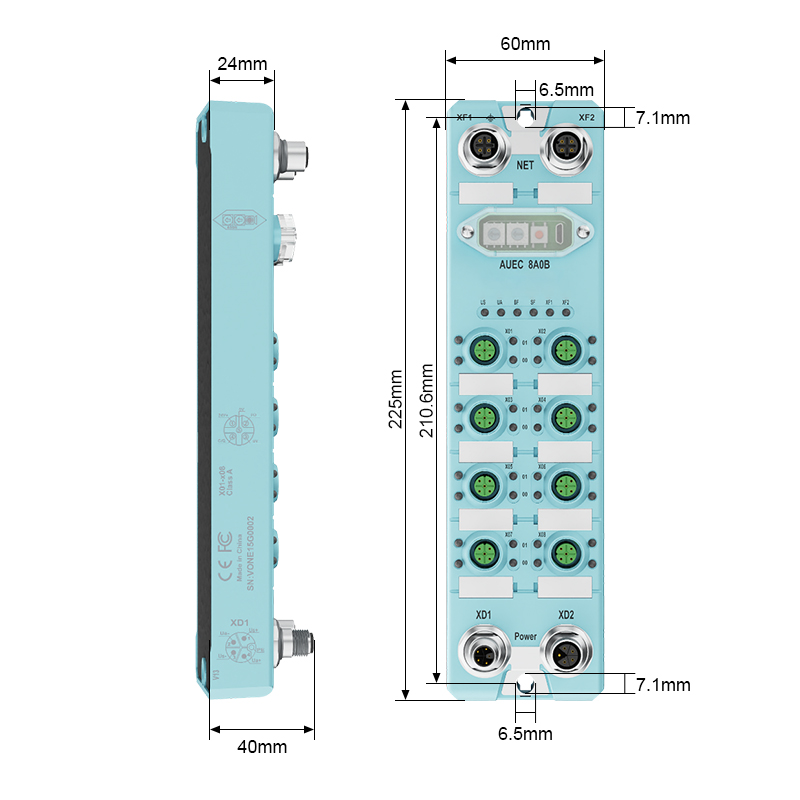

Dimensions
Port Description

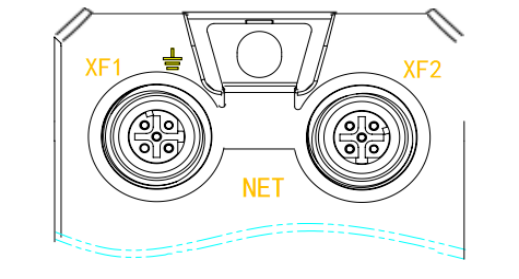

1. Profinet-RT communication interface
XF1 and XF2 are D-Code aircraft female plugs with internal threads;
XF1 is the PN1 port for Profinet-RT communication
XF2 is connected to PN2 port for Profinet-RT communication

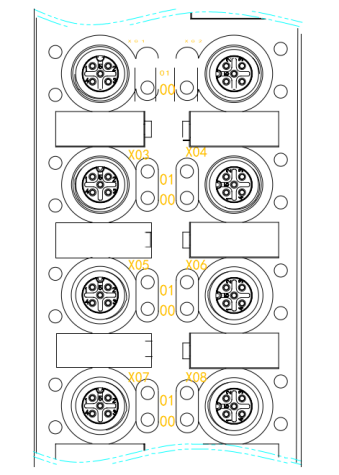

2. The interface is an aircraft mother plug with internal thread;

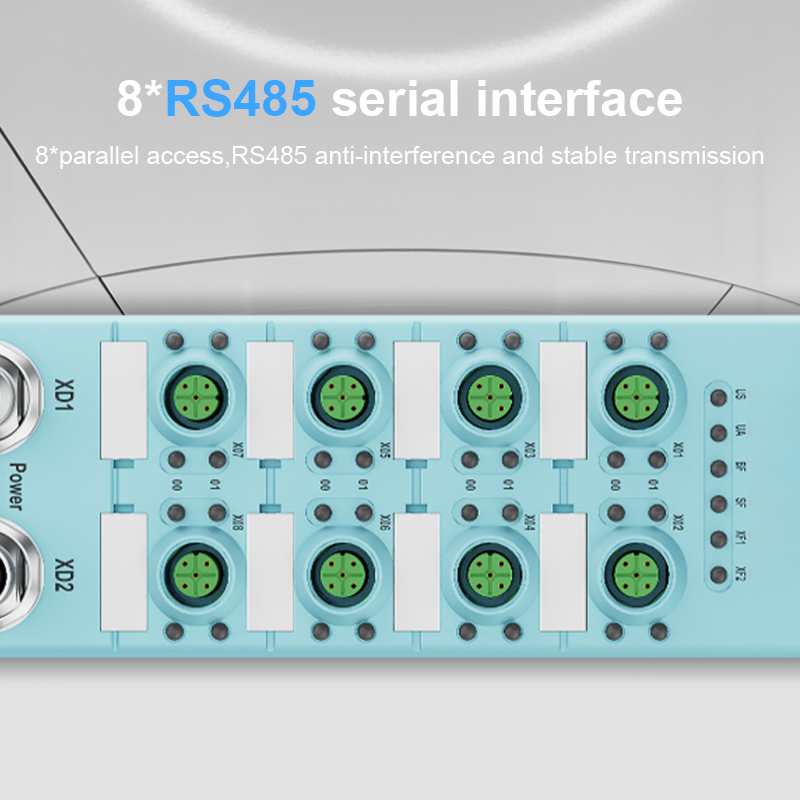

Ports X01~X08 are RS485 communication interfaces
|
Interface pin definition |
|
|
Serial number |
definition |
|
1 |
NC |
|
2 |
RS485 signal A |
|
3 |
NC |
|
4 |
RS485 signal B |
|
5 |
PE |

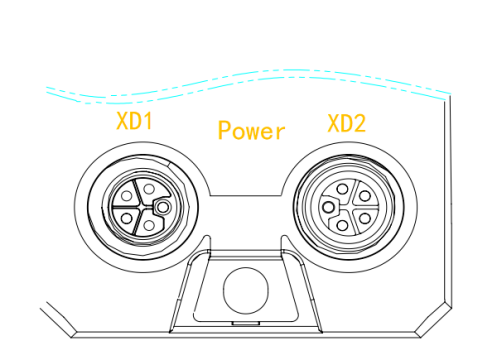

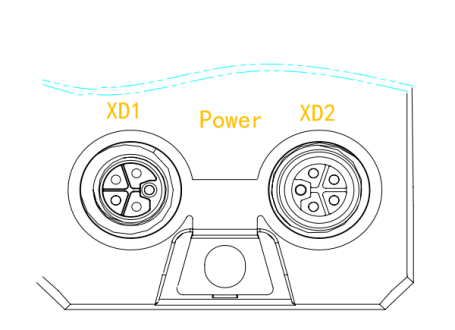

3.XD1 interface: Power input terminal, the interface is aviation male plug, external thread
|
XD1 Interface Pin Definition |
|
|
Serial number |
definition |
|
1 |
System and signal load power supply Us+ |
|
2 |
Auxiliary power supply Ua- |
|
3 |
System and signal load power supply Us- |
|
4 |
Auxiliary power supply Ua+ |
|
5 |
Protective PE |
4.XD2 interface: power output terminal, the interface is an aircraft mother plug, internal thread
|
XD2 Interface Pin Definition |
|
|
Serial number |
definition |
|
1 |
System and signal load power supply Us+ |
|
2 |
Auxiliary power supply Ua- |
|
3 |
System and signal load power supply Us- |
|
4 |
Auxiliary power supply Ua+ |
|
5 |
Protective PE |
