CF323 Industrial-grade UHF reader writer
-Compatible with RS232/RS485 industrial communication interface, can be connected to different control systems
-It adopts cylindrical packaging, small size, suitable for occasions with limited installation space and card reading distance within 0.5m.
-Applications: tool management, robot data acquisition, semiconductor automation production line, power lithium battery production line, automobile production line, etc.
Product Specifications
|
Electrical parameters |
|
Mechanical properties |
||
|
Operating frequency |
920.5--924.5 MHZ (China) |
Protection level |
IP67 |
|
|
Follow standards |
EPC Global Class l Gen 2／IS0-18000-6C |
Communication connection |
M12×1 connector |
|
|
Output power |
27dBm |
Housing material |
ABS+stainless steel |
|
|
Maximum code capacity |
2K Bytes |
filling |
Silicone |
|
|
Sensing range |
Size |
ø30mm×80mm |
||
|
Reading distance |
0~50mm (depends on the tags and work environment) |
weight |
About 80g |
|
|
Writing distance |
0~40mm(depends on the tags and work environment) |
Other parameters |
||
|
Read and write time |
Operating voltage |
DC24V |
||
|
Read Data |
1 5ms |
Labor consumption |
≤2.2W |
|
|
Write Data |
20 ms |
Signal Indication |
led |
|
|
|
Communication interface |
RS232 (Modbus RTU) RS485 (Modbus RTU) Canbus (Canopen) IO-Link, AS-Interface |
||
Details display

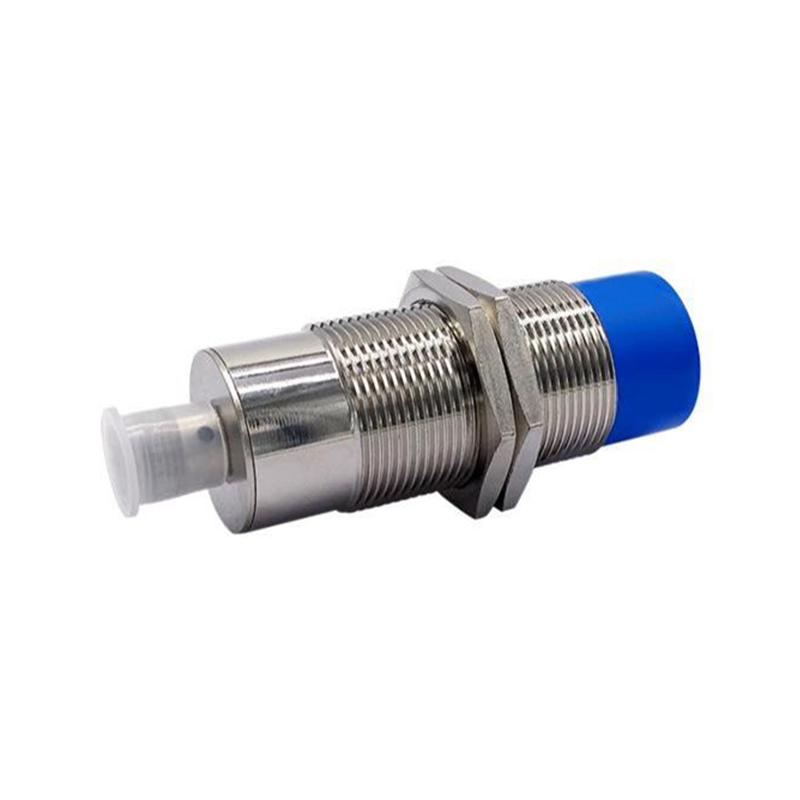

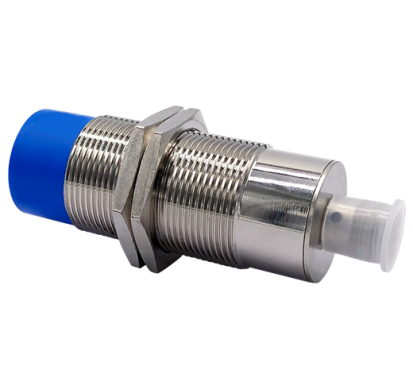

Actual picture

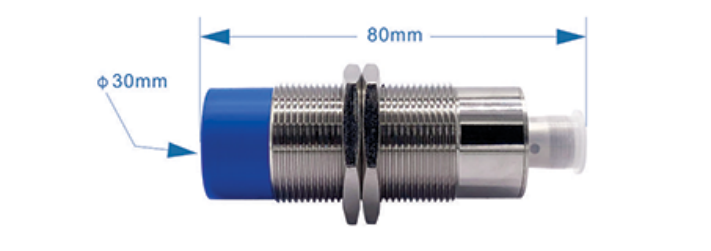

Product size
Mechanical dimensions: ø30mm×80mm

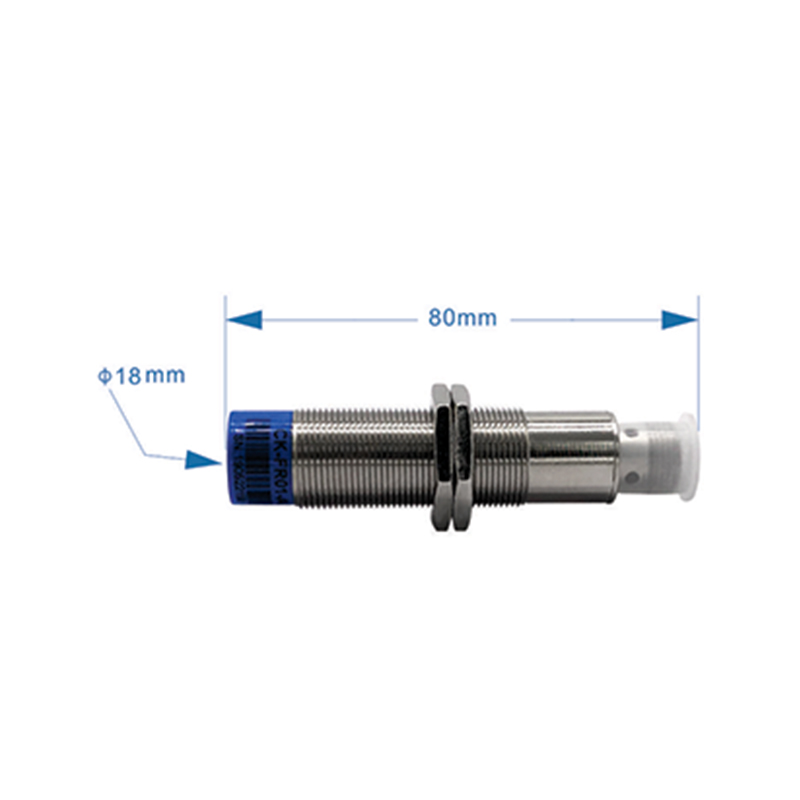

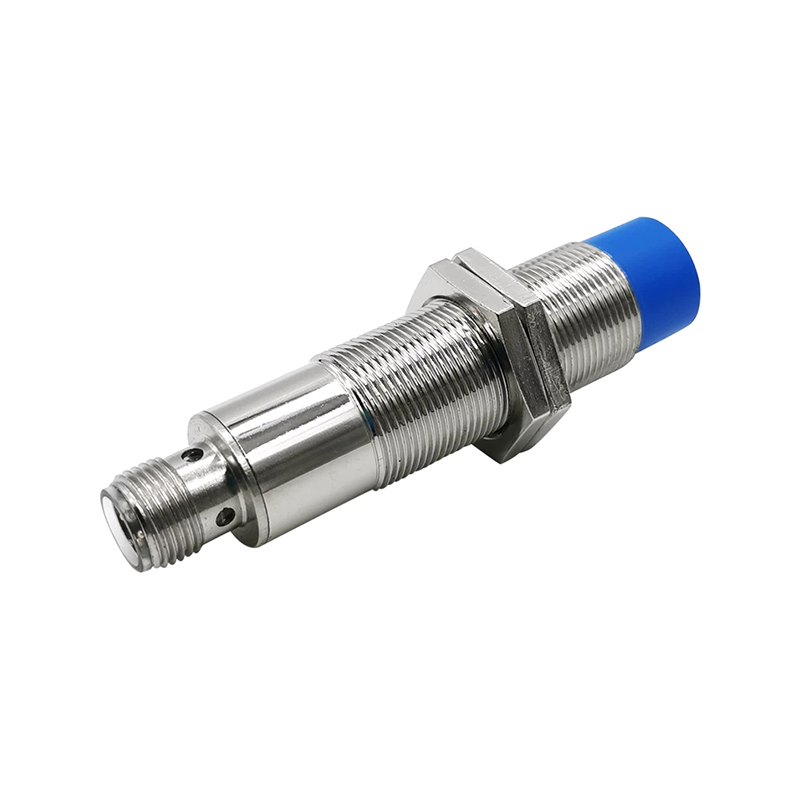

Related products
|
Picture |
|
|
|
|
Model |
CF321 |
CF322 |
CF323 |
|
Frequency |
13.56MHZ |
13.56MHZ |
920MHZ-925MHZ |
|
Reading distance |
0~50mm |
0~35mm |
0~50mm |
|
Writing distance |
0~40mm |
0~30mm |
0~40mm |
|
Communication interface |
RS232, RS485 |
||
