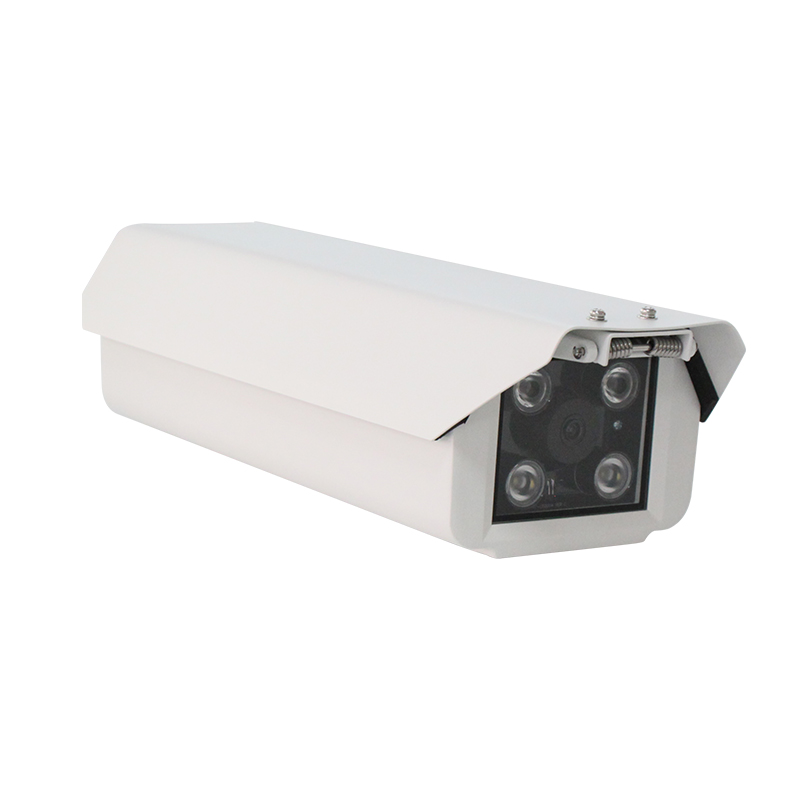

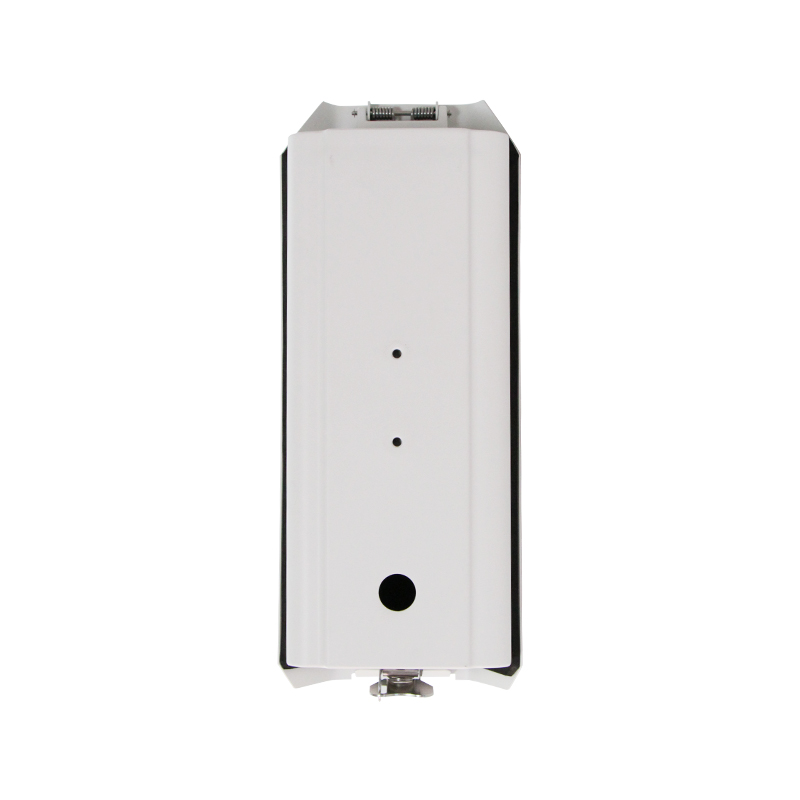

V300 License Plate Recognition Camera

Category

Item

illustrate

Recognition algorithm

Capture rate

≥99.9%

Recognition rate

≥99.8%(Typical license plate)

Adapt to vehicle speed

0-40 km/h

License Plate Recognition Type

Ordinary blue license plate, single-layer and double-layer yellow license plate, new energy, single-layer and double-layer police car, new armed police, single-layer and double-layer military license plate, new embassy, ​​training car, Hong Kong and Macao license plate for entering and leaving the mainland, emergency license plate, civil aviation, special license plate, etc.

License Plate Recognition Features

Number, color, type, width

License plate anti-counterfeiting

Supports abnormal license plate (photographed and printed by mobile phone) alarm

Trigger for unlicensed vehicles

Support unlicensed car video triggering

License plate whitelist

Support accurate and intelligent fuzzy matching of whitelist license plate rules

Smart Calibration

Supports precise or wildcard calibration of license plate numbers, types and colors

Imaging

Basic Configuration

Built-in intelligent ISP algorithm

Intelligent optimization dimming algorithm, intelligent adaptation to complex scenes

Basic parameters (brightness/contrast/saturation/clarity/image flip/exposure time, etc.) can be set separately

Video and Audio

Video compression standards

H.264/H.265;

Video resolution

720*576、1280*720、1920*1080、2880*1620

Compression output bit rate

512Kbps~5000Kbps

Frame rate

1~25 frames, default 25 frames (2884*1624)

Communication

Communication Protocol

SDK、HTTP、RTSP、TCP/IP、UDP、RS485、IO、NTP

*Indicates that it will be supported through subsequent version updates

Category

Indicator

Complete Machine

Imaging

sensor

500W 1/2.7吋CMOS

Resolution

2884(H) x 1624(V)

Low light

0.1LUX color (fill white light)

Electronic shutter

0-1ms or custom

Standard lens

4mm fixed focal length lens

Interface

M12

Image indicators

Image Settings

Brightness, contrast, saturation, image flip, exposure time, etc.

Noise Reduction

Support 2D/3D noise reduction

Wide dynamic range

Support

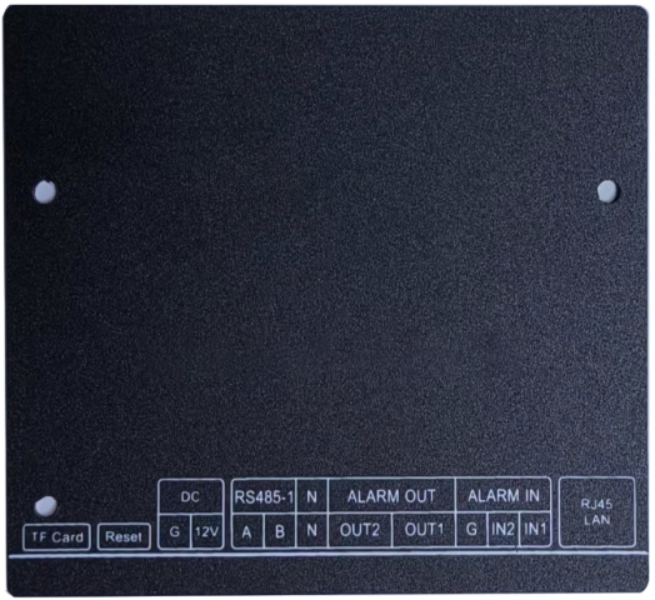

Interface buttons

Network Interface

1 10/100Mbps adaptive RJ45 port

IO output

2-way

IO input

2-way

RS485

1-way

TF card slot

1 TF card slot, maximum support 128G capacity

Reset button

1 RESET button

System lights

1 GPIO status light (green)

Power light

1 power light (red)

Reliability Index

temperature

Operating temperature: -20℃~70℃

Static electricity

Contact 6KV, air 8KV;

Surge

10/70 common mode 4KV, differential mode 2KV; 8/20 common mode 2KV, differential mode 2KV

Vibration resistance

National Standard

Powered by

12V DC

Power consumption

Power consumption ≤5W

Protection

IP65

Structure

Parameters

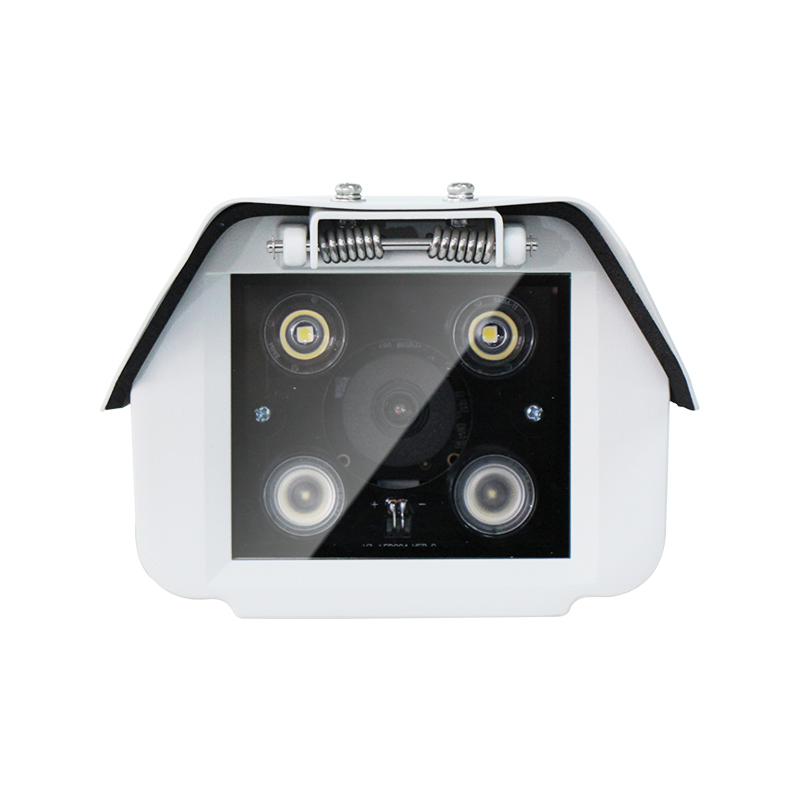

Fill Light

Standard LED light board (4 LED lamp beads with adjustable brightness, power consumption ≤4W)

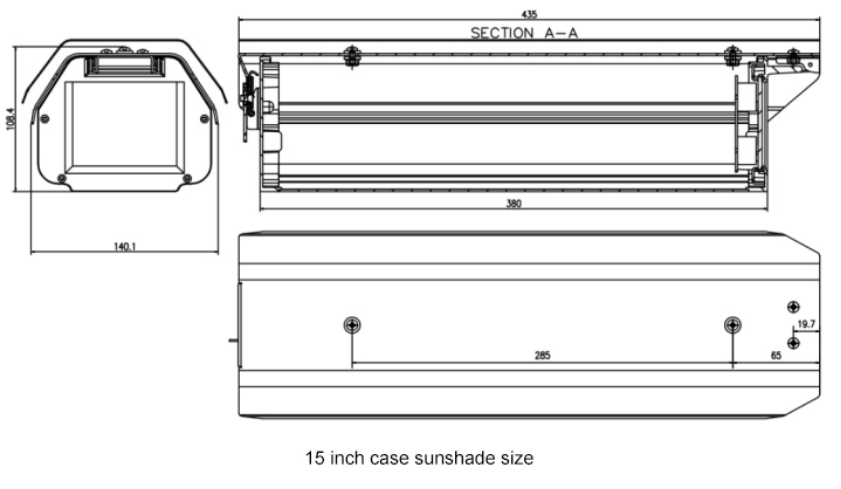

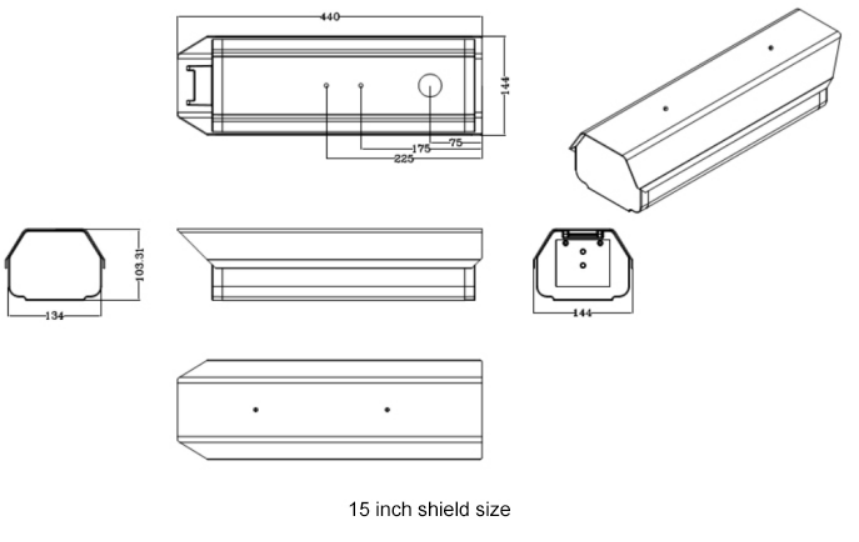

Dimensions

440mm（L）*144mm(W)*103mm(H)
