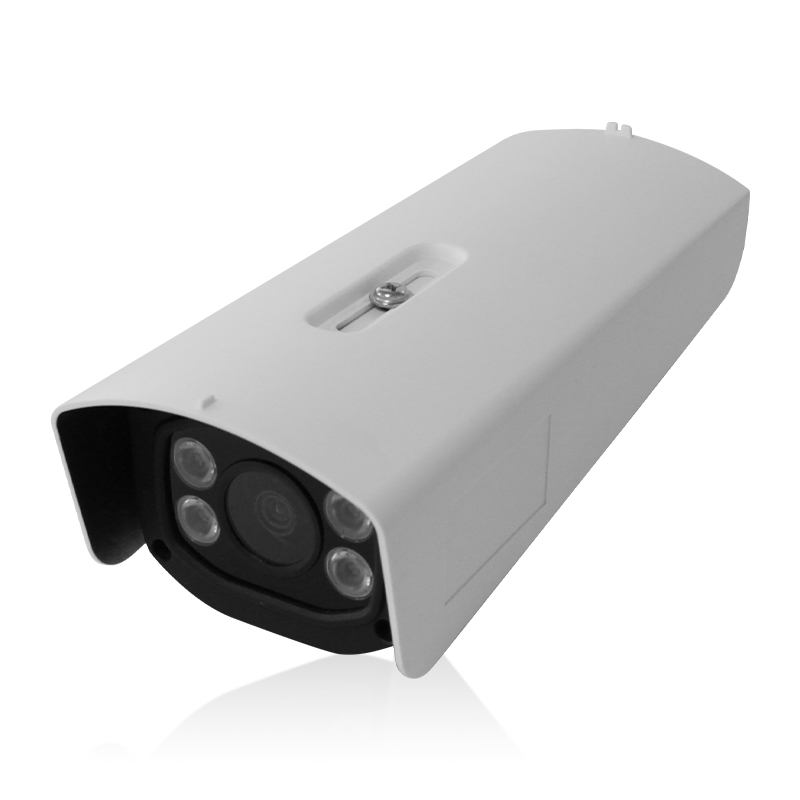

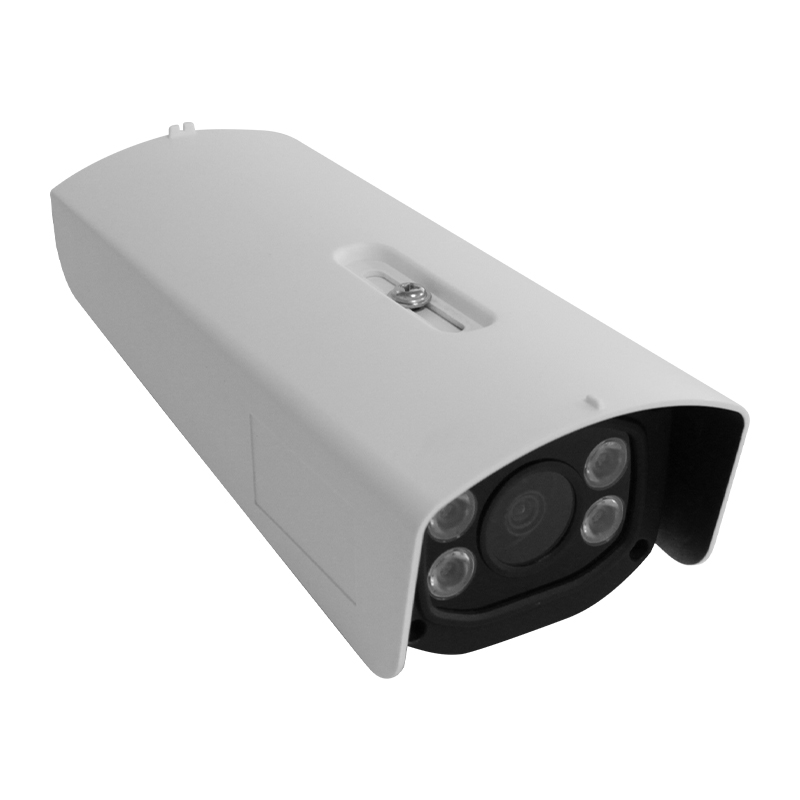

V200 License Plate Recognition Camera
- Built-in license plate recognition CNN algorithm
- Super starlight camera, suitable for harsh light environments
- Support blacklist and whitelist management
- Can save pictures via SD card
- Application: parking lot management, license plate recognition, vehicle detection, etc.
Product Specifications
|
Technical Parameters |
|
Data Communication |
||
|
Processor |
Dedicated license plate recognition chip |
Interface |
RJ45、GPIO、RS485、USB、SD |
|
|
Sensor type |
1/2.8" progressive scan CMOS |
Power supply range |
12V |
|
|
Recognition rate |
≥99.7% |
Working power |
≤7.5W |
|
|
Trigger mode |
Video trigger, coil trigger, vehicle interception rate 99.7% |
Development Environment |
||
|
Image output |
2 megapixel jpeg |
SDK |
Demo software, API, examples, user manuals |
|
|
Video compression format |
H264，H265，MJPEG |
Development language |
C#、Delphi、java、Python、VB etc |
|
|
Physical parameters |
Http Post |
Support |
||
|
Housing |
Die-cast aluminum + sheet metal |
Special functions |
Can be completed through remote upgrade |
|
|

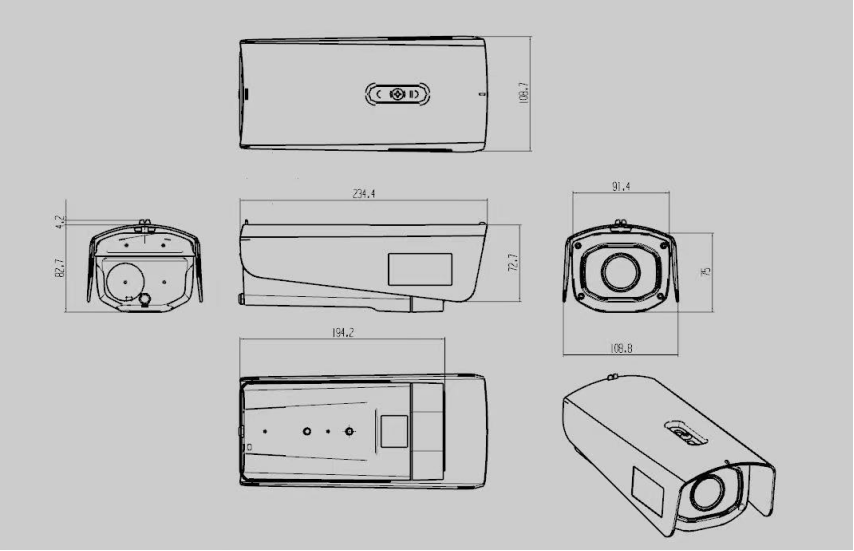

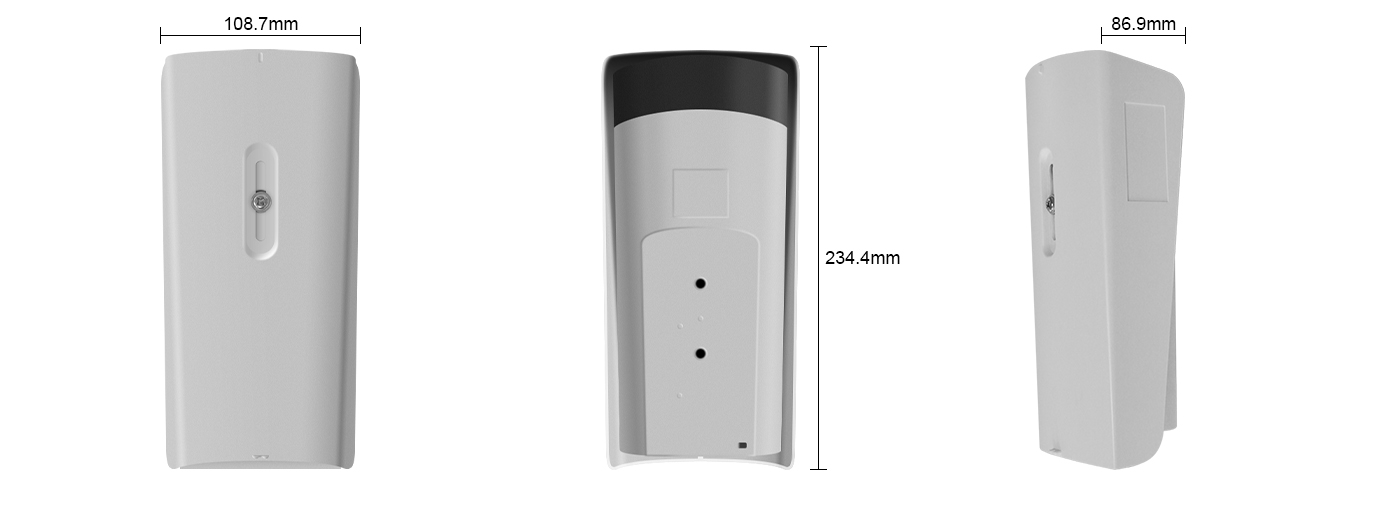

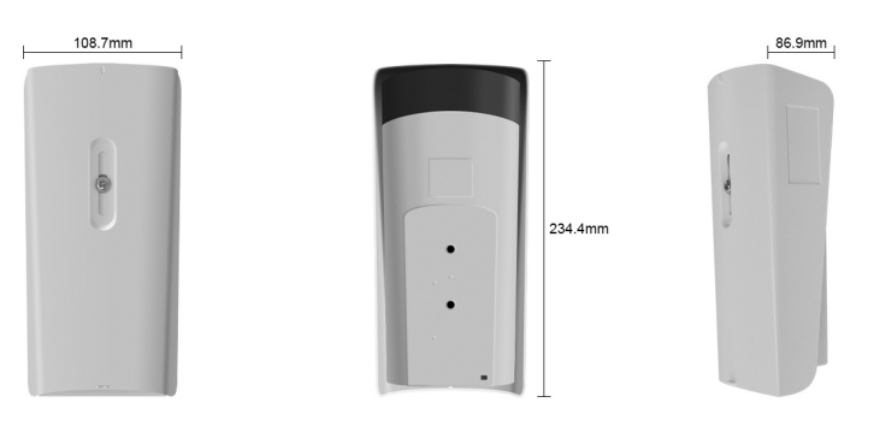

Dimensions |
234.4*108.8*86.9mm |
Work Environment |
||
|
Net weight |
1kg |
IP protection level |
IP65 |
|
|
|
|
Operating temperature |
-25℃~+70℃ |
|
|
|
|
Operating humidity |
≤90% (no condensation) |
|
Details display
|
Power & Communication & GPIO (3.81mm plug-in terminal) wiring definition |
||||||||||||
|
Function |
power supply |
RS485 |
GPI |
GPO |
||||||||
|
Symbol |
VCC |
GND |
A1 |
B1 |
GND |
IN1 |
IN2 |
Gnd |
O1+ |
O1- |
O2+ |
O2- |
|
Description |
12V±5% |
ground |
Differential signal |
Differential signal |
ground |
The input terminal can be grounded |
The input terminal can be grounded |
ground |
Relay out put |
Relay out put |
Relay out put |
Relay out put |
