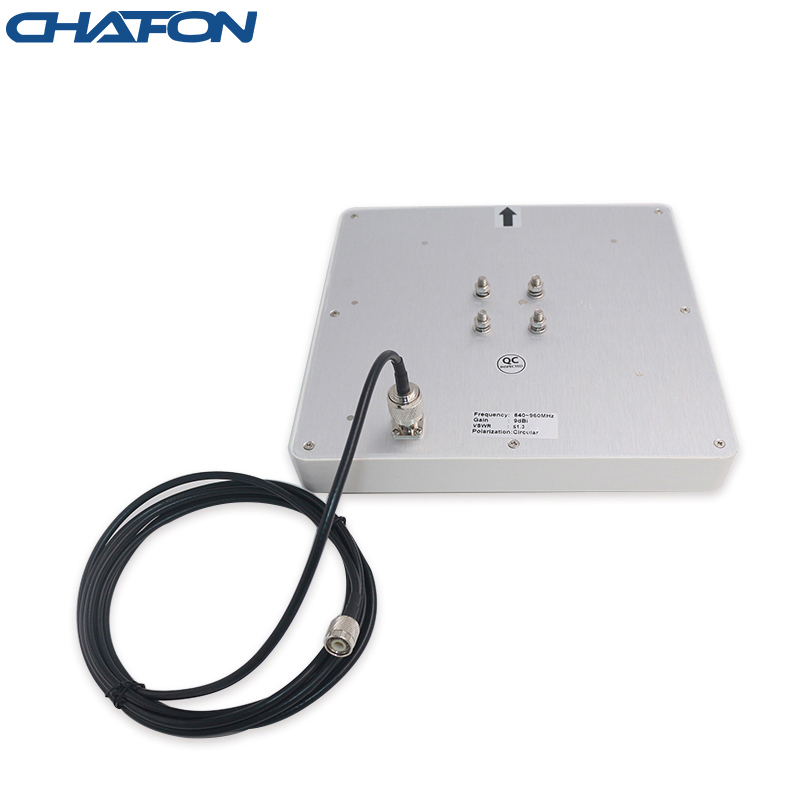

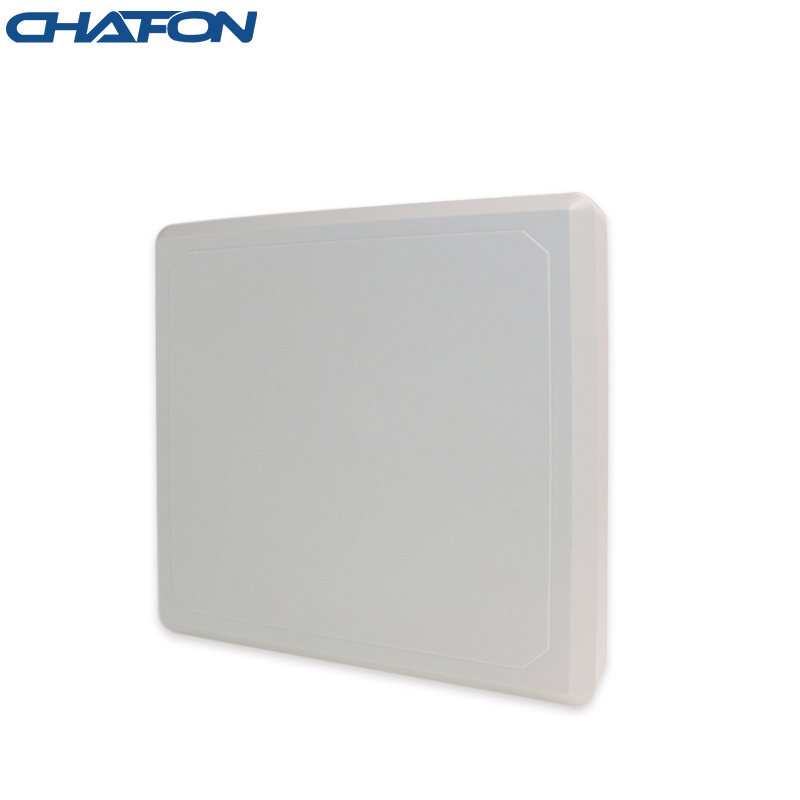

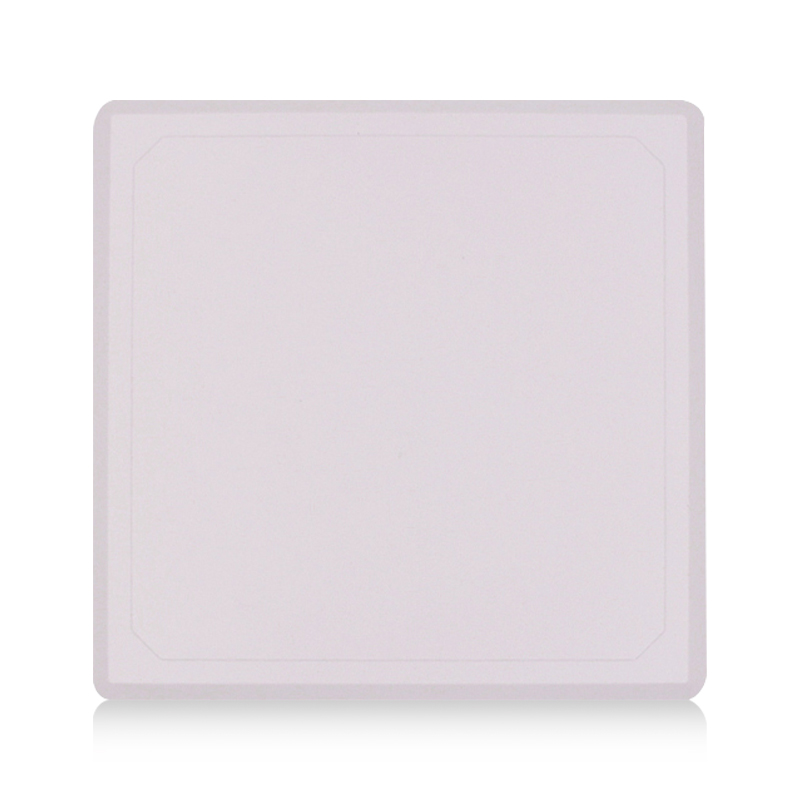

CF-RA9001 UHF 9dbi circular panel antenna
CF-RA9001 UHF 9dBi circular antenna
Product name: UHF 9dBi circular antenna
Product number: CF-RA9001
Package size: 300mm*300mm*80mm
Gross weight: 0.65kg
Product specification:
|
Model |
CF-RA9001 |
|
|
Electrical specifications |
||
|
Frequency range (MHz) |
902-928/865~868 |
|
|
Polarization |
HCP |
|
|
Gain(dBi) |
9 |
|
|

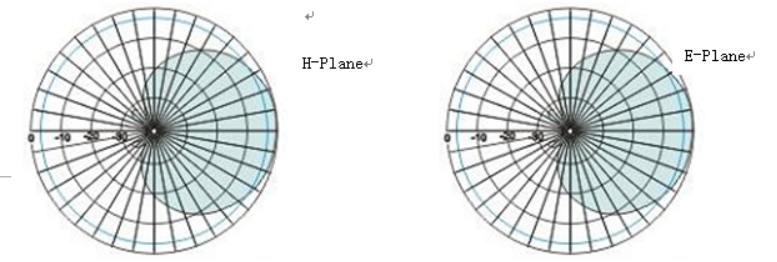

Half-power beam width(°) |
Hor:54 Ver:50 |
|
|
Front-to-back ratio(dB) |
≥20 |
|
|
Impedance(Ω) |
50 |
|
|
VSWR |
≤1.3 |
|
|
Maximum input power(W) |
200W |
|
|
Lightning protection |
DC Ground |
|
|
Mechanical specifications |
|
|
|
Connector |
N-female |
|
|

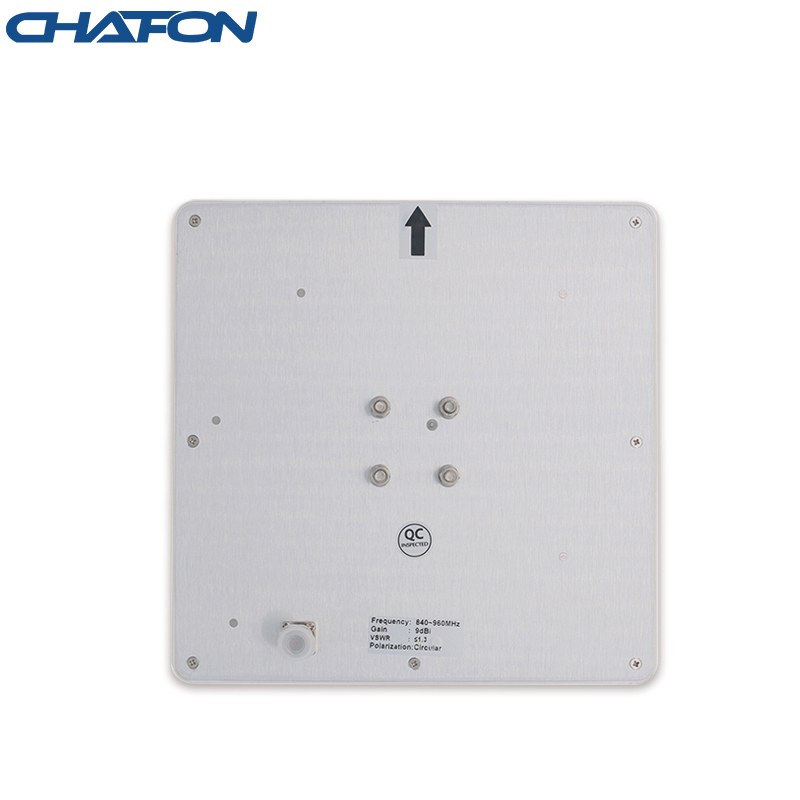

Connector position |
Bottom |
|
|
size（mm） |
260×260×40 |
|
|
Packing size（mm） |
300×300×80 |
|
|
Antenna weight（kg） |
0.6 |
|
|
Packing weight（kg） |
0.65 |
|
|
Wind loading area(㎡) |
≤0.2 |
|
|
Rated wind velocity(m/s) |
60 |
|
|
Reflector material |
Aluminum |
|
|
Radome material |
ABS |
|
|
Radome color |
white |
|
|
Operating temperature(℃) |
-40～80 |
|
