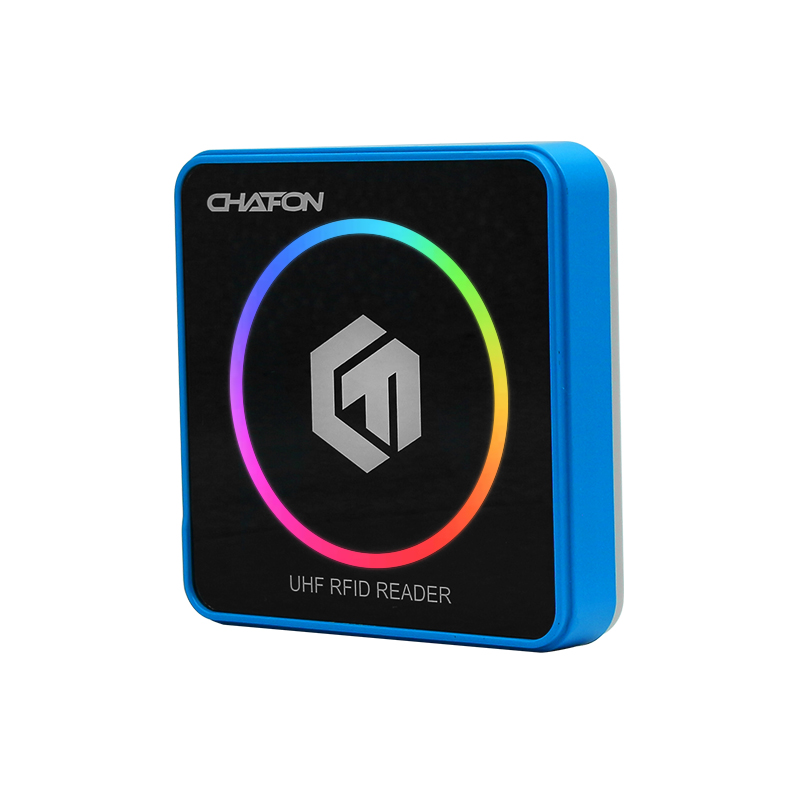

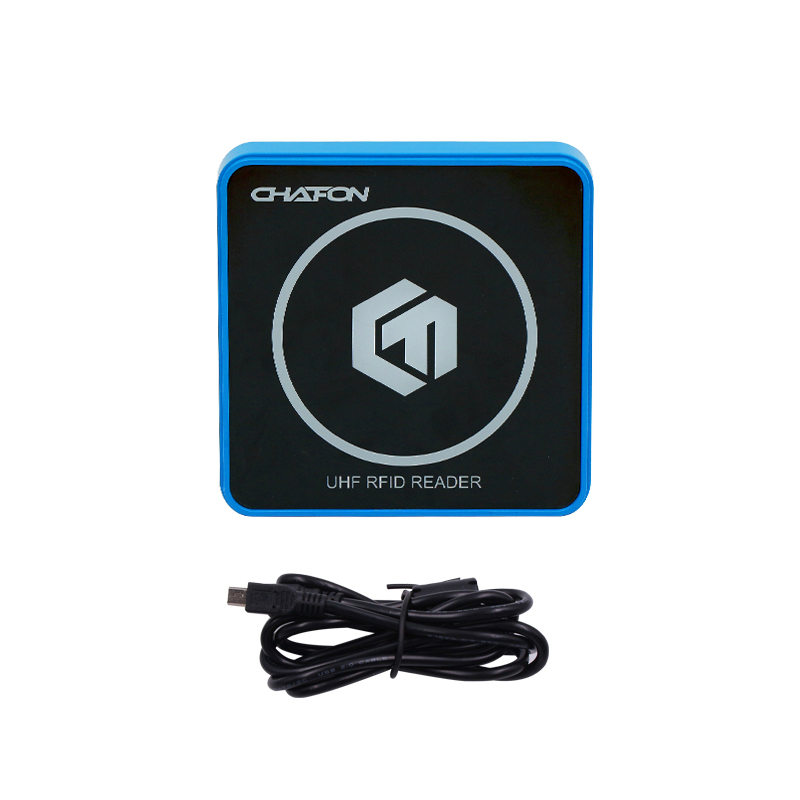

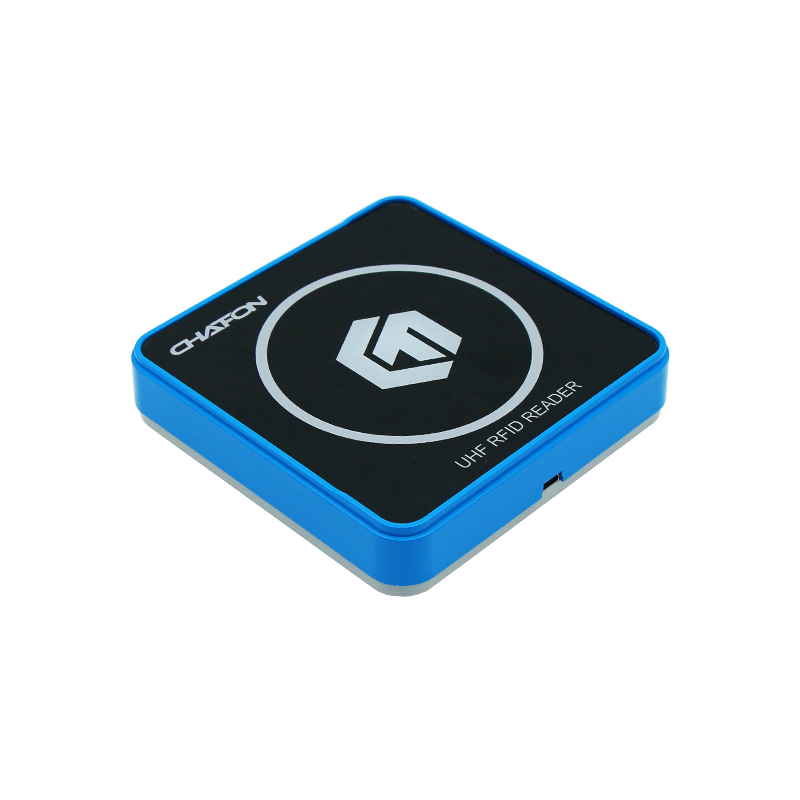

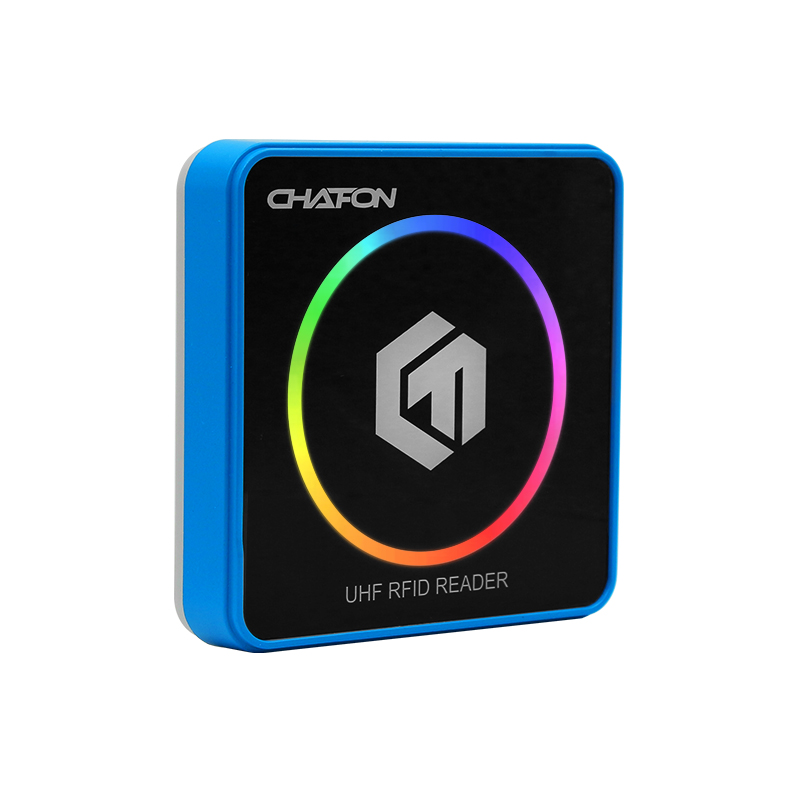

CF600 UHF desktop reader writer

- USB read-only/read-write mode
- USB virtual serial port output
- USB keyboard emulation output
- Support Wiegand 26/34 output
- Application: cash register system, membership card system, personnel attendance system, label authorization card issuance, etc.

Product Specifications

RFID Technical Parameters			Data Communication
Frequency	902~928MHz (US） 865~868MHz （EU）		Standard interface	USB
Protocol	ISO18000-6C (EPC GEN2)		Sound and light indication	RGB colorful lights, buzzer
RF output power	0-17dbm(Adjustable）		Power supply	5V
Reading distance	0~50cm （Depends on label type and application environment）		SDK	Demo software, API, examples, user manual
Operating mode	USB read-only/read-write mode USB virtual serial port output USB keyboard emulation output Wiegand 26/34 output		Development language	C#, Delphi, java, Python, VB and other languages
RSSI	Support		Firmware version	Support online upgrade
Physical parameters			working environment
Material	Acrylic panel + ABS body		Operating temperature	-10~+65℃

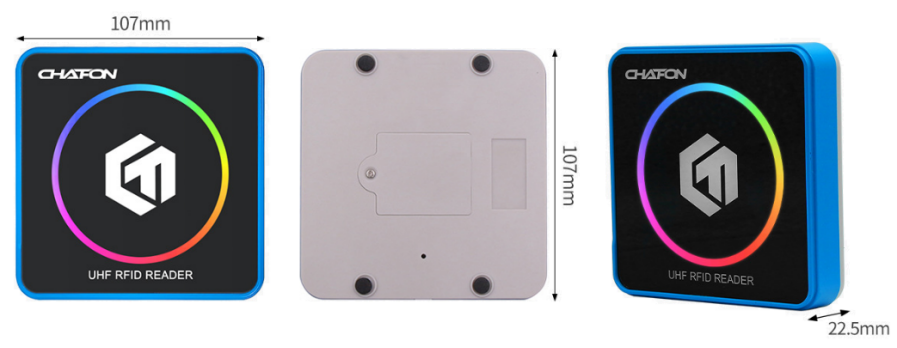

Dimensions	10710722.5mm		Storage temperature	-25~+80℃
Net Weight	150g

Details display

The USB interface supports three modes

Read and write mode

Data programming and password or mask authorization for tags

Virtual serial port output

Serial port data transmission through the serial port debugging assistant

Keyboard emulation output

Plug and play, optional EPC/TID area, can receive tag numbers in text formats such as word/excel/notepad

Related Products

Model	CF600	CF601	CF603
Output RF Power	0~17dbm (Adjustable)	0~17dbm (Adjustable)	0~26dbm (Adjustable)
Reading Range	0-50cm (Depends on the label & application environment)	0-50cm (Depends on the label & application environment)	6-7 M (Depends on the label & application environment)
Dimensions	10710722.5mm	8512518.8mm	40034020mm

Application

RFID Vehicle Management Solution

Introducing RFID technology into daily vehicle management scenarios.
UHF integrated reader can automatically read tag and upload data to the control system.
Ensure that the road gate can still be opened and closed automatically according to the vehicle identification When no one's in control.
To help property owners to effectively limit vehicles access, convenient fee management,etc.

RFID Timing System Solution

Install UHF fixed reader & UHF antenna at Start/Finish line and Checkpoint.
When runners with UHF tag passing these points, UHF fixed reader will automatically collect tag data and upload these tag data to the system.

RFID Ski Resort Ticket Management Solution

Using RFID equipment in the ticketing system of the ski resort.
Realize automatic identification of labels and automatic ticket checking.
Reduce the tedious process of manual checking tickets, reduce the waiting time for skiing enthusiasts, and improve the efficiency of the ski resort.

RFID Library Management Solution

Using RFID technology and UHF equipment to build a complete library intelligent management system.
It can not only check the inventory, but also protect the books against theft.
A complete library management system mainly includes the following five parts: label authorization, shelf management, manual borrowing and returning, self-service borrowing and returning, anti-theft detection.

RFID Intelligent Cabinet solution

Introducing RFID technology in the intelligent cabinet system can quickly and effectively manage the items in the cabinet.
It can automatically collect data in terms of item classification, inventory quantity, etc., and timely and accurately grasp the real data in the cabinet.

RFID Warehouse Management Solution

Under the existing warehouse management, warehouse management system introduces RFID technology to collect the data automately of various operational aspects such as Arrival Inspection, Inbound, Outbound, Redeployment, transfer to different location, Stock Inventory, etc.
