CHAFON Warehouse management solution

By SHENZHEN CHAFON TECHNOLOGY CO .,LTD

1.Briefsolution

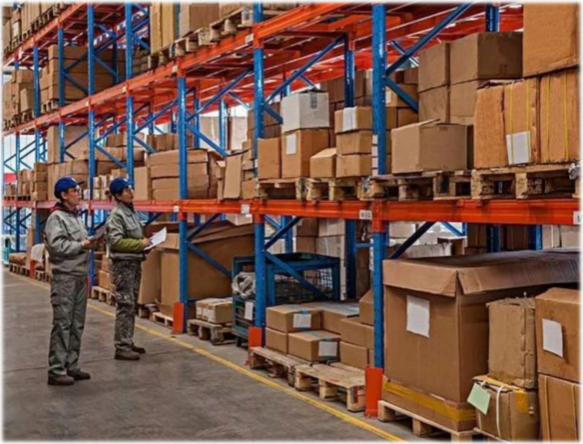

Under the existing warehouse management ,

warehouse management system introduces RFID

technology to collect the data automately of various

operational aspects such as Arrival Inspection ,

Inbound , Outbound , Redeployment , transfer to

different location, Stock Inventory, etc.

Ensure the speed and accuracy of data input in all

aspects of warehouse management and to ensure

that the enterprise accurately and timely master of

the real data of the inventory, and to reasonably

maintain and control the enterprise's stock.

2、

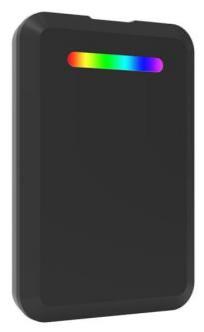

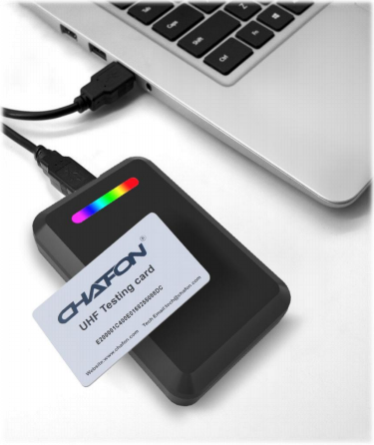

Can use UHF reader & writer to read the tag number, and match tag number with goods information in the software.

With USB interface can connect PC ，and use our demo software to read and write the card.

ü After programming , can stick the tag on goods or box.

l CF601

l USB interface

l 0-30cm reading distance

l can Read, write and encrypt

tags

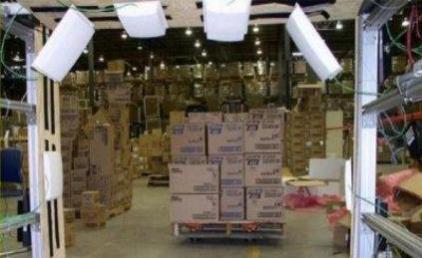

UHF fixed reader connect with UHF antenna and be installed on both sides or on

top of the entrance/exit.

When the goods with UHF tags through the entrance/exit, they will be identified

and the data will be sent to the warehouse management system.

Connect fixed reader & antenna through cable, standard length 3 meters.

The cable length can be customized according to the actual installation

requirements.

The fixed reader can communicate with the network port TCP/IP to upload the

data to the server.

ü Working Mode: Active Mode power on to read and upload the tag, Answer Mode to control the reader by command and upload again

ü The supply working power is 9~24V, equipped with 12V 2A power adapter, can also use other power supply equipment.

ü Support SDK, can use for second development.

l CF-RA5001 l 5dbi circular l reading distance up to 5m l antenna port: SMA female

4、

l

l

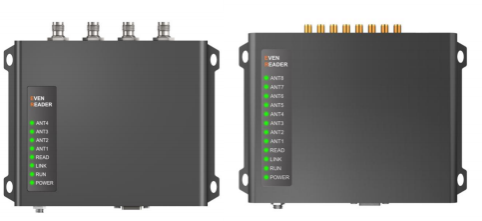

（1）UHF fixed reader

CF810 four-channel fixed reader l CF816 eight-channel fixed reader

reading distance up to 15m          l reading distance up to 25m

l Standard communication interface: RS232 、USB 、RJ45， optional interface: POE 、WiFi

（2）UHF antenna

l CF-RA9002

l 9dbi circular

l reading distance up to 10m

l antenna port: N-Female

l CF-RA1201

l 12dbi circular

l reading distance up to 12m

l antenna port: N-Female

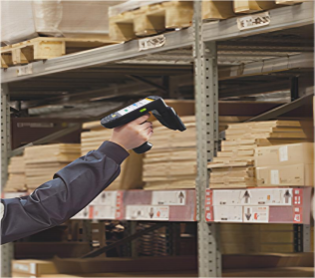

For regular inventory of goods on shelves and in storage areas, can use our UHF

handheld reader with multi-tags reading and long range fast tags identification.

ü support 200pcs/s reading speed, long range reading distance up to 18m.

ü Support Bluetooth, 4G, WIFI communication and 1D/2D barcode scanning

ü with demo software, can satisfy the basic functions of data reception and export

ü with SDK, support second development for app use.

l CF-H906

l Android 9.0 operating system

l 2+16G/4+64G

l 0-18M reading distance

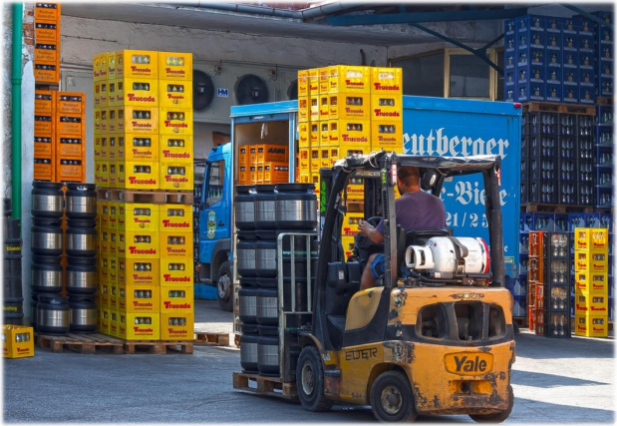

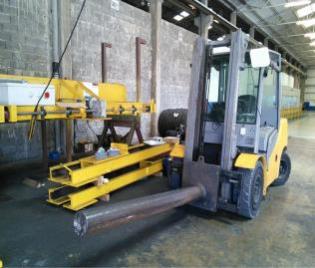

The use of rfid technology to monitor the forklift trucks for goods

transfer can be roughly divided into two situations:   single tag

identification and multi-tag identification

single tag identification ：If the forklift transfers a board of goods at one

time, and only one tag need to be identified, can install UHF integrated

reader in the front of the forklift. When forklift forks the board with

goods, UHF integrated reader will read the tag and upload data to the

management system.

multi-tag identification：If the forklift transfers a board of goods at one

time and need identify multi-tags, use UHF fixed reader connect more

than two antenna. Install the antenna in the front of the forklift.When

forklift forks the board with goods, UHF fixed reader will read the tags

and upload the data to the management system by cmmuni cation

interface TCP/IP/POE/WIFI.

Working Principle and related equipments same as access management.

（1）UHF integrated reader

ü Standard interface WG 、RS232 、RELAY ，optional communication interface WiFi 、TCP/IP 、POE

ü Active Mode power on to read and upload the tag, Answer Mode to control the reader by command and upload again

ü have LED light: red means working; green means reading.

ü The supply working power is 9~24V, equipped with 12V 2A power adapter, can also use other power supply equipment.

ü Password and mask code can add reading security grade.

ü Support SDK, can use for second development.

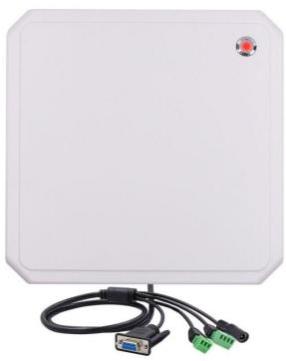

l CF691

l built-in 9dbicircular antenna

l reading distance up to 10 meter

l size: 260*260*60mm

8、UHFtagssuitableforwarehousemanagement

Our rfid tags commonly used UHF chips are U8, U9, H3, etc., roughly divided into 3 categories: paper tags, anti- metal tags, flexible anti-metal tags.

（1）If goods is non-metallic cartons, plastic boxes, etc., can use UHF paper labels.

ü UHF paper labels are available in different sizes and can be customized to special sizes.

ü The tag material is PP synthetic paper, if need PET, can also be customized.

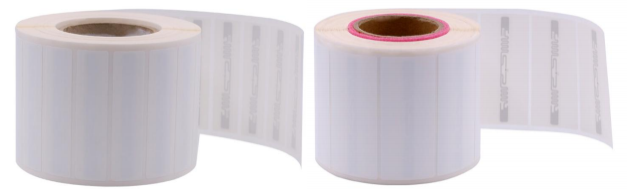

UHF paper tag G9201

（2）If goods is metal, can use UHF anti- metal tag.

ü made by ABS/PCB/Special materials

ü Waterproof, High Temperature Resistant, Corrosion Resistant

ü With adhesive backing With screw holes

（3）If tag will be sticked on Irregular surface of metal goods , can use our UHF flexible anti-metal tag.

ü made by special electronic materials+AL

UHF anti-metal tag

52*13*2.5mm

10*5*3mm

UHF flexible anti-metal tag

65*35*1.25mm

G9803

95*22*1.25mm

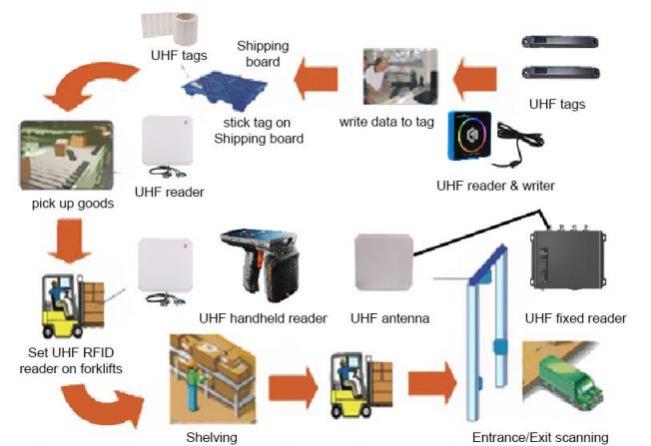

Access control

management

Forklift   → management

stock  一→ inventory
