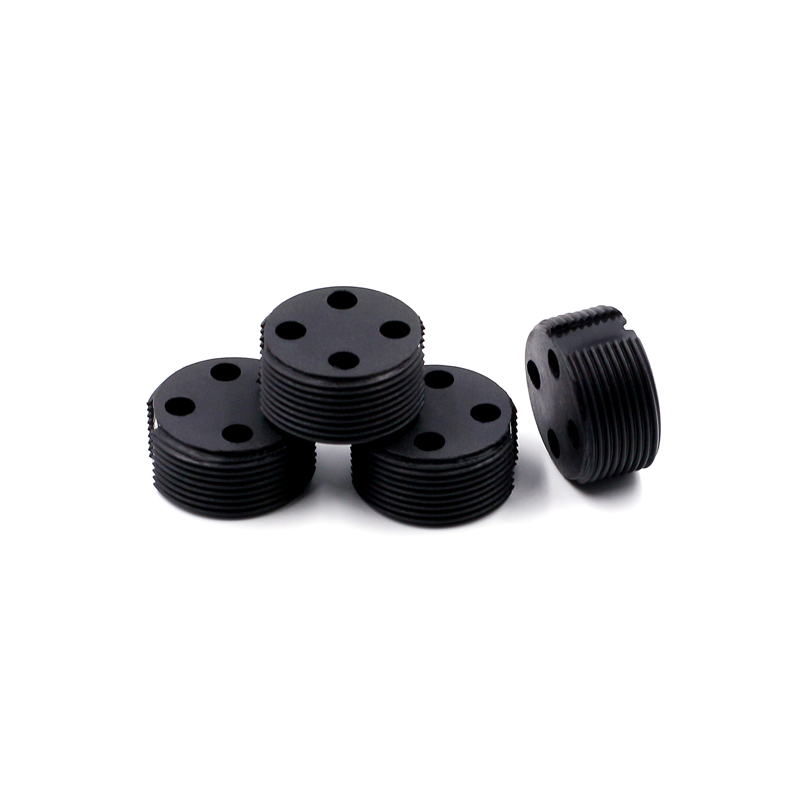

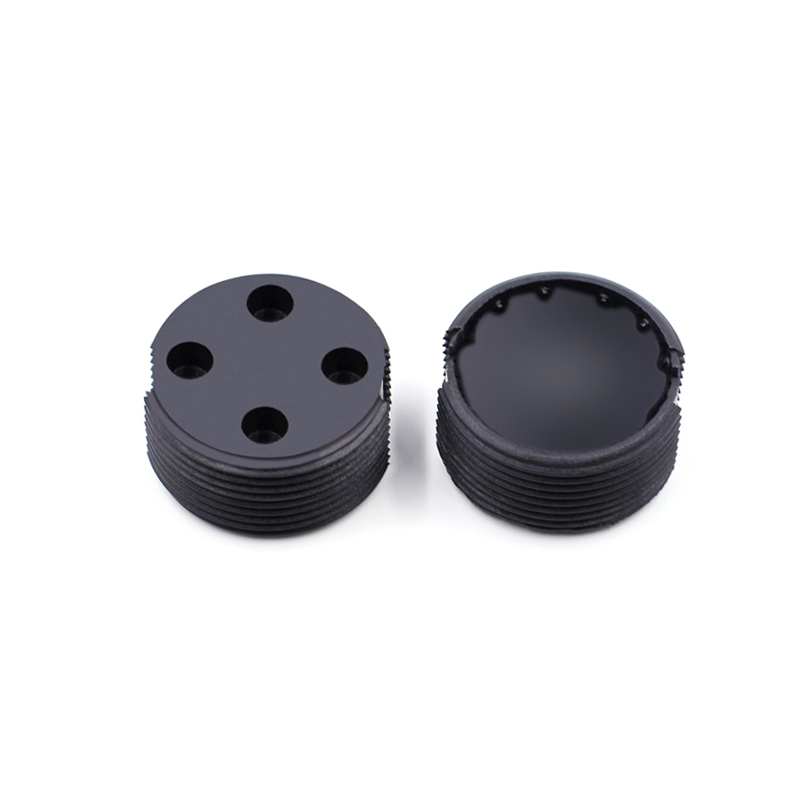

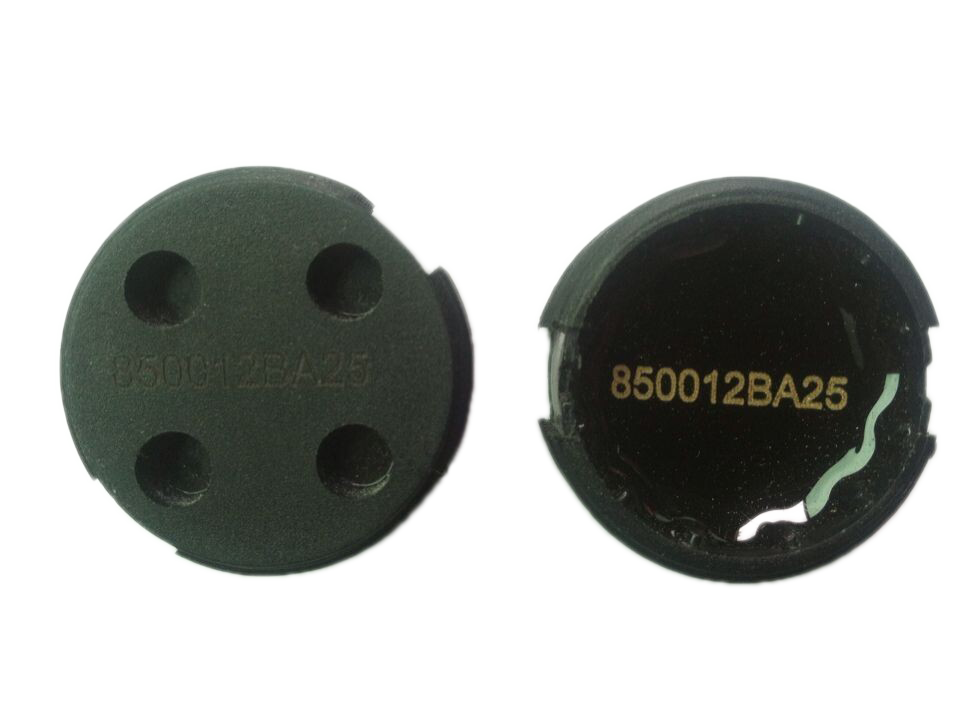

G8620 UHF RFID waste bin tag
Chip:TK4100/EM4305/F1108/Mifare S50/I code2/Impinj R6/Nxp U-code8

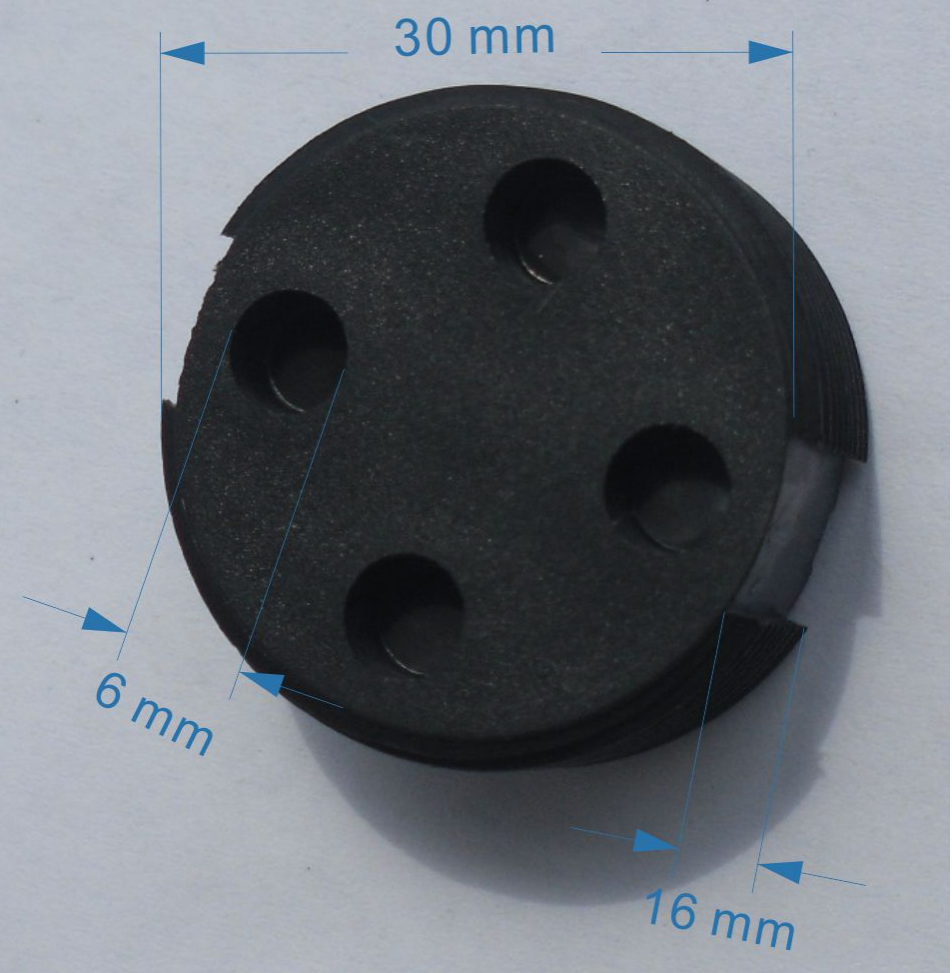

Size:30*16mm
Material:nylon
Size:30*16mm
Material:nylon
Product name:Thread label
\Size: 30*16mm weight: 10g
|
Model |
Thread TAG |
|||||||||
|
Type |
electronic tag |
|||||||||
|
Physocal Parameters |
||||||||||
|
Products size |
30*16mm |
|||||||||
|
Packaging materials |
Plastic shell: nylon Potting: epoxy resin |
|||||||||
|
quantity |
|
|||||||||
|
Environmental parameters |
||||||||||
|
Working tenperature |
-20~120℃ |
|||||||||
|
Environmental parameters |
||||||||||
|
Chip |
TK4100 |
EM4305 |
RF08 |
S50 |
I-CODE2 |
Alien H3 |
||||
|
Standard |
|
ISO11784/785 |
ISO14443A |
ISO15693 |
ISO18000-6C,EPC Classl Gen 2 |
|||||
|
Menory |
|
512 bit |
1kbyte |
1024bits |
64 bit TID 512 bits user |
|||||
|
Working mode |
Read only |
Read and write |
Read and write |
Read and write |
||||||
|
Operating frequency |
125KHZ |
13.56MHZ |
840~960MHZ |
|||||||
|
Read Distance |
15cm |
15cm |
5cm |
2m-3m |
||||||
|
Data retention |
10years |
|||||||||
|
Programming Cycles |
10 times |
|||||||||
|
Business application |
||||||||||
|
Application field |
Trash tracking, etc. |
|||||||||
