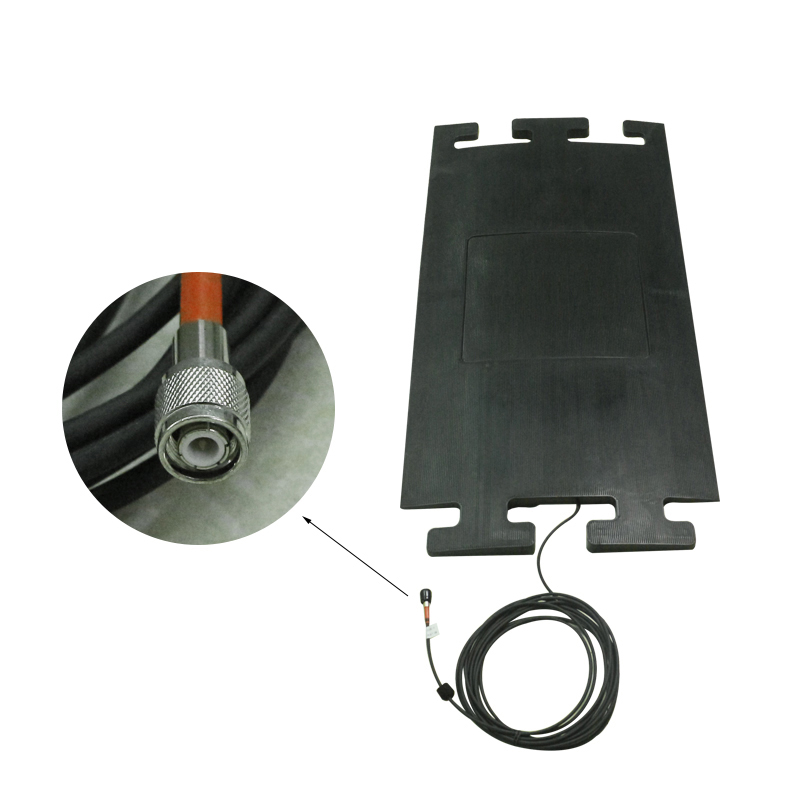

CF-RA2006 UHF 6dbi vertical floor mat antenna

- Ultra-thin design, easy to install
- Anti-interference, waterproof and dustproof, outdoor all-weather working
- Application: sports timing, asset management, etc.

Product Specifications

RFID Parameters			Technical Parameters
Frequency	868-868MHz（EU） 902~928MHz（US）		Standing wave ratio	≦1.5
Gain	6dBi		Impedance	50 Ω
Back connector model	Lead-out feeder (TNC male or customer specified)		Lightning protection	DC grounding
Polarization	Vertical polarization		Environmental parameters
Radiation angle	Horizontal: 120° Vertical: 110°		Installation	Tiled to the ground
Physical parameters			Operating temperature	-40～60℃
Radome material	rubber		Storage temperature	-40～80℃

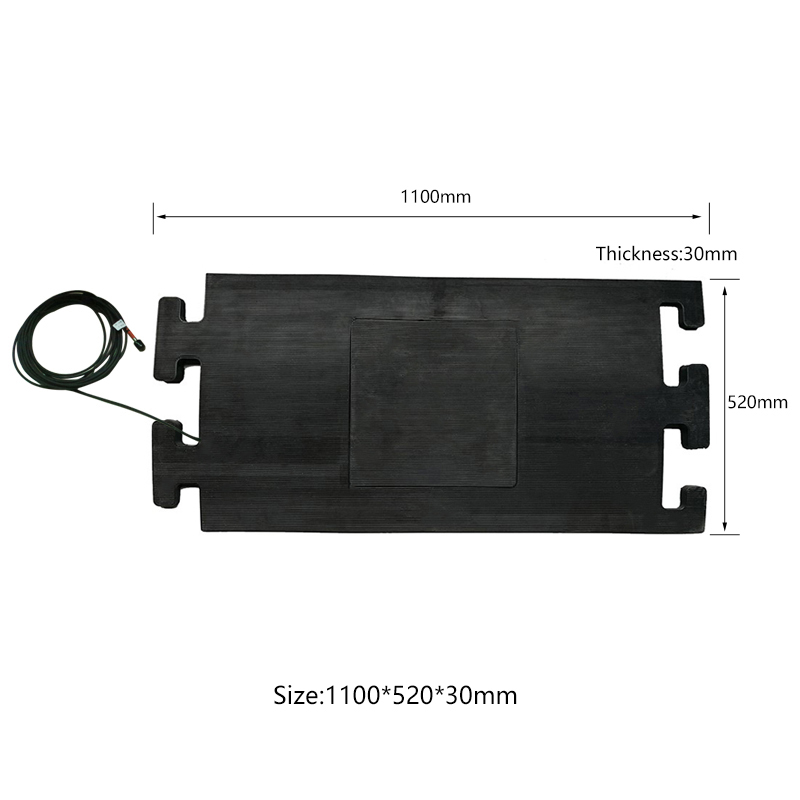

Device size	110055030mm		Product List
Device weight	14kg		Standard	Antenna*1

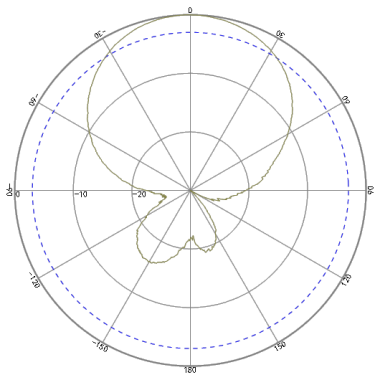

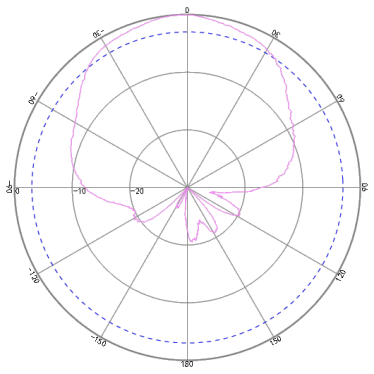

Radiation Angle

v

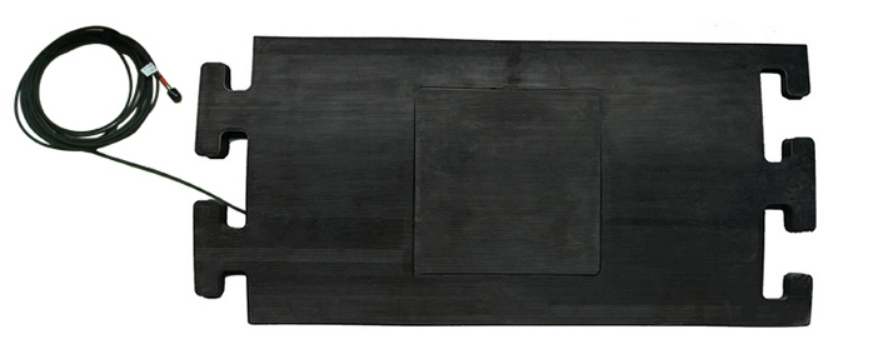

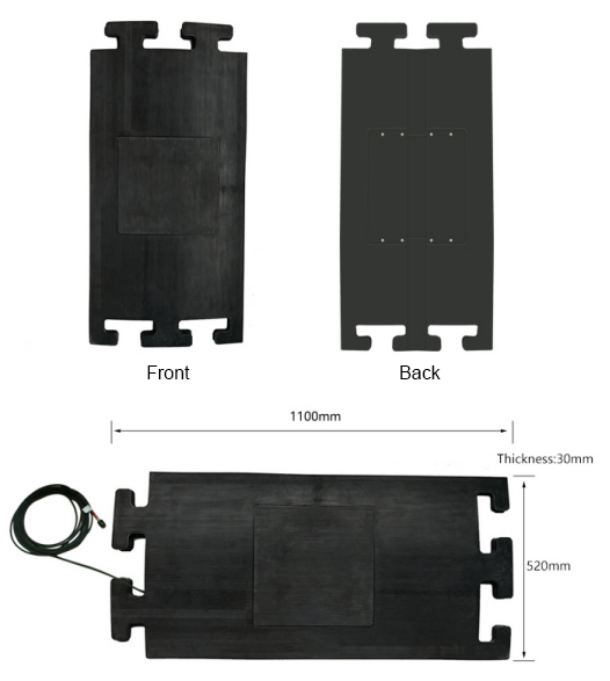

Details display

Related Products

Model	CF-RA2006	CF-RA2005
Gain	6dBi	7dBi
Polarization	Linear polarization	Linear polarization
Dimensions	110055030mm	200030010mm (customizable)

Application

RFID Vehicle Management Solution

Introducing RFID technology into daily vehicle management scenarios.
UHF integrated reader can automatically read tag and upload data to the control system.
Ensure that the road gate can still be opened and closed automatically according to the vehicle identification When no one's in control.
To help property owners to effectively limit vehicles access, convenient fee management,etc.

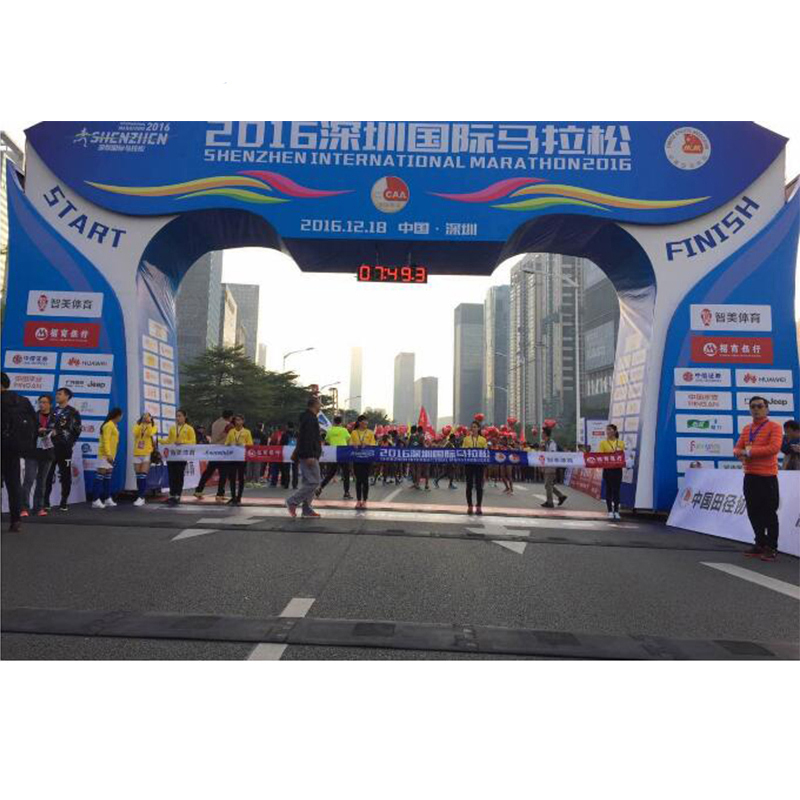

RFID Timing System Solution

Install UHF fixed reader & UHF antenna at Start/Finish line and Checkpoint.
When runners with UHF tag passing these points, UHF fixed reader will automatically collect tag data and upload these tag data to the system.

RFID Ski Resort Ticket Management Solution

Using RFID equipment in the ticketing system of the ski resort.
Realize automatic identification of labels and automatic ticket checking.
Reduce the tedious process of manual checking tickets, reduce the waiting time for skiing enthusiasts, and improve the efficiency of the ski resort.

RFID Library Management Solution

Using RFID technology and UHF equipment to build a complete library intelligent management system.
It can not only check the inventory, but also protect the books against theft.
A complete library management system mainly includes the following five parts: label authorization, shelf management, manual borrowing and returning, self-service borrowing and returning, anti-theft detection.

RFID Intelligent Cabinet solution

Introducing RFID technology in the intelligent cabinet system can quickly and effectively manage the items in the cabinet.
It can automatically collect data in terms of item classification, inventory quantity, etc., and timely and accurately grasp the real data in the cabinet.

RFID Warehouse Management Solution

Under the existing warehouse management, warehouse management system introduces RFID technology to collect the data automately of various operational aspects such as Arrival Inspection, Inbound, Outbound, Redeployment, transfer to different location, Stock Inventory, etc.
