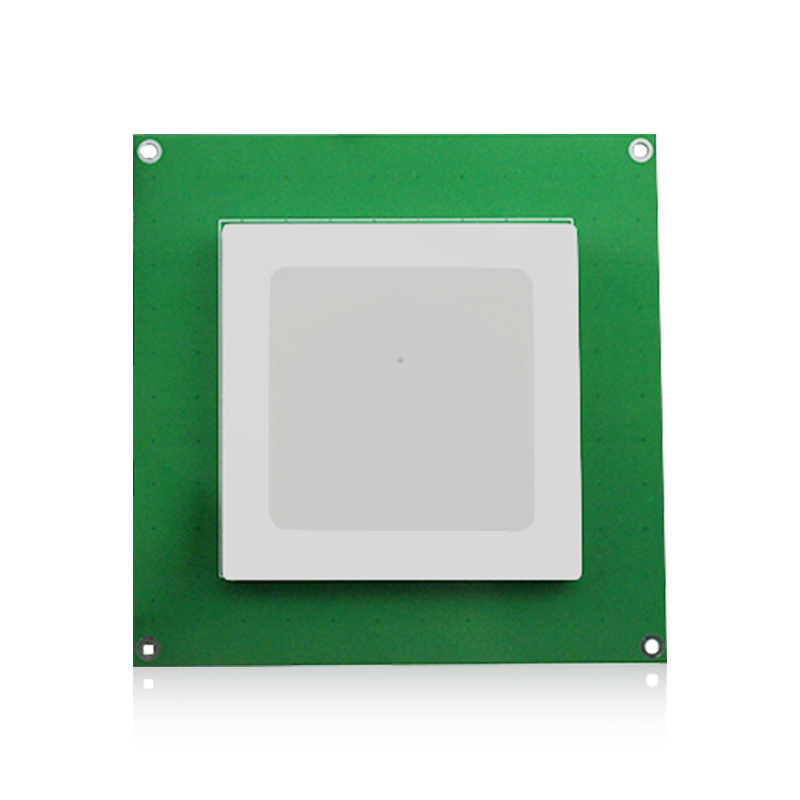

CF-RA6161 UHF 4dBi ceramic antenna

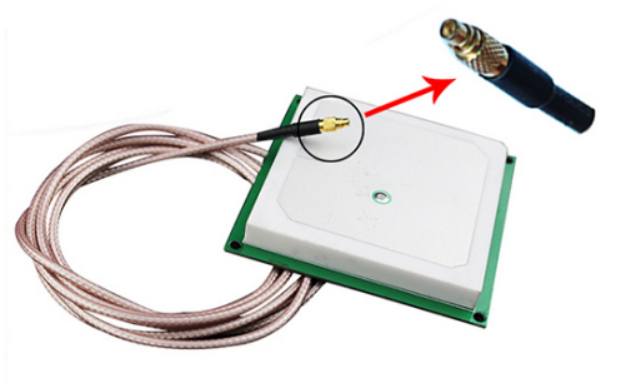

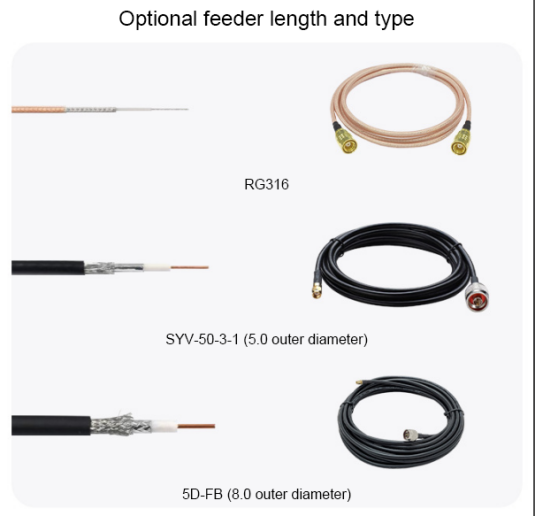

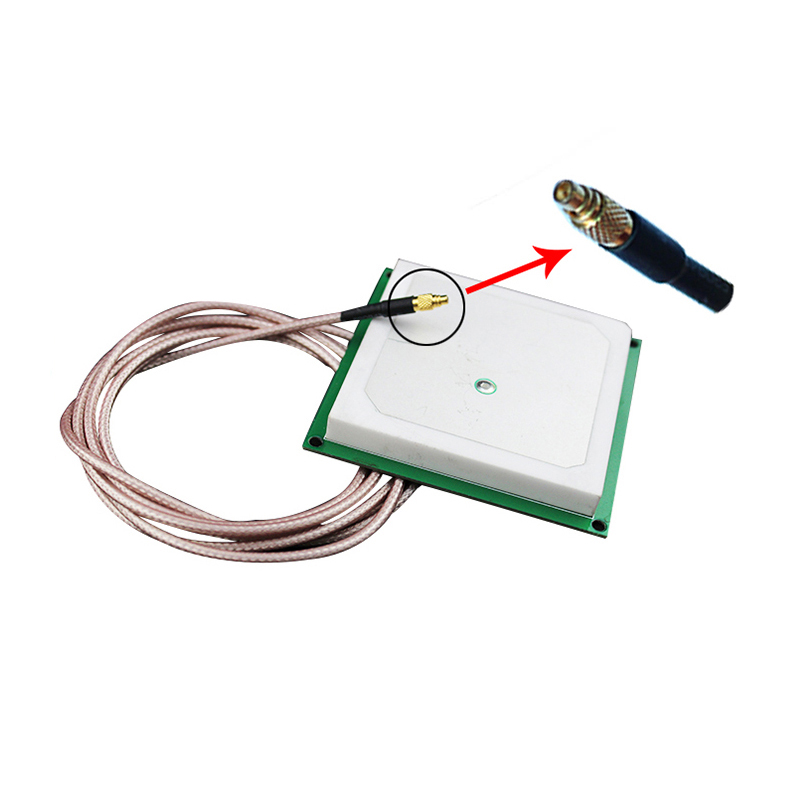

- Integrated machine, standard 30cm feeder, RG316 brown high temperature resistant wire
- Application: handheld terminal embedding, intelligent integration, smart retail, freezer management, asset management, document management and other scenarios
- Application: handheld terminal embedding, intelligent integration, smart retail, freezer management, asset management, document management and other scenarios
Product Specifications
|
RFID Parameters |
|
Technical Parameters |
||
|
Frequency |
868-868MHz（EU） 902~928MHz（US） |
|
Bandwidth |
20MHz |
|
Gain |
4dBi (dual feed)
|
|
Maximum power |
10W |
|

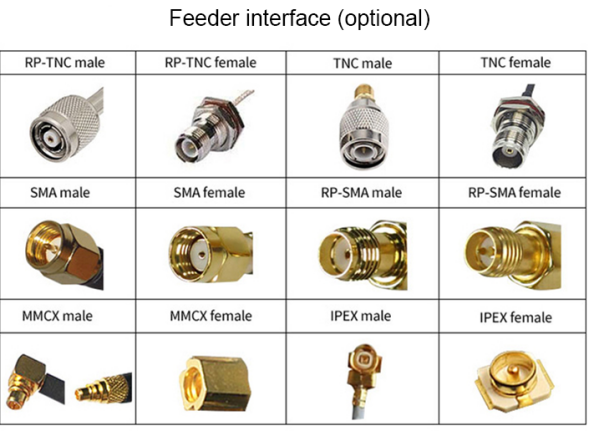

Rear connector model |
30cm feed line |
|
VSWR |
≦1.1 |
|
Polarization |
Circular polarization |
|
Impedance |
50Ω |
|
Physical parameters |
|
Lightning protection |
DC grounding |
|
|
Ceramic size |
60*60*7mm |
|
Product List |
|
|

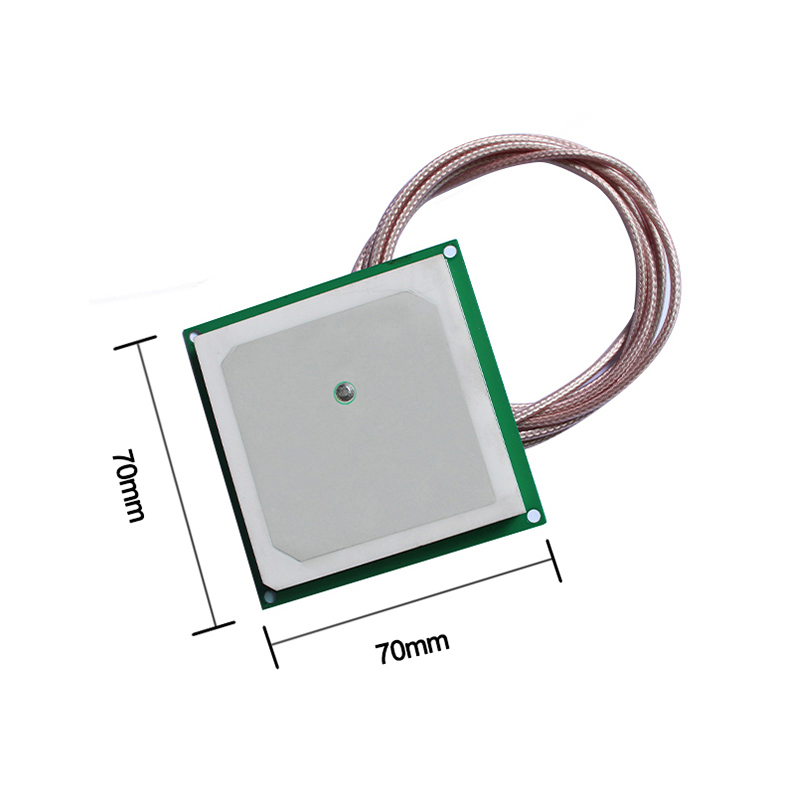

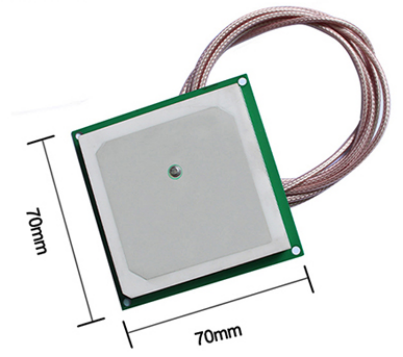

PCB size |
70*70*1.5mm |
|
Standard |
Antenna*1 |
|
Weight |
90g |
|
|
|

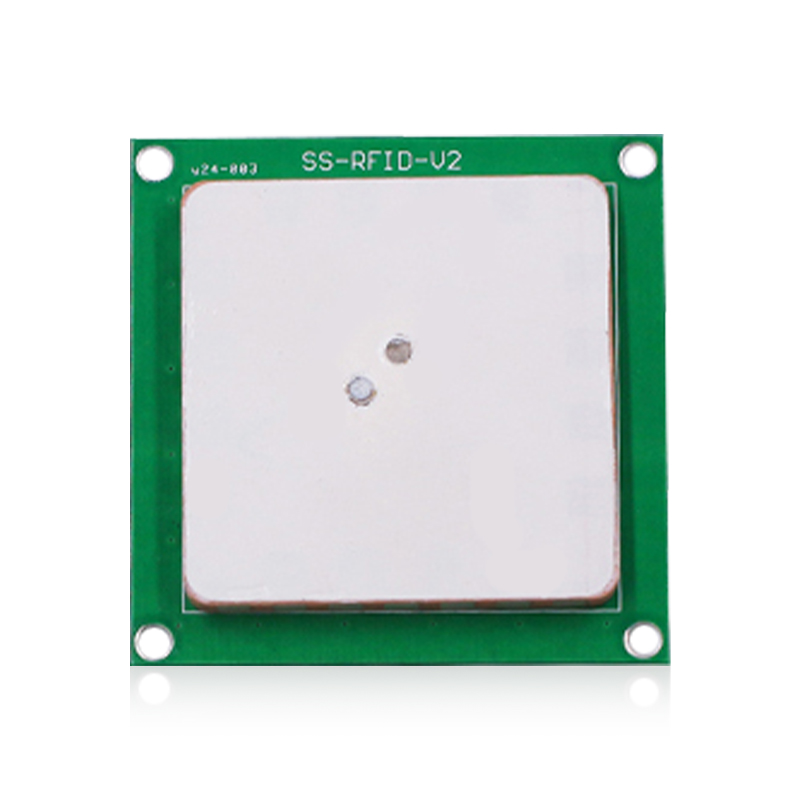

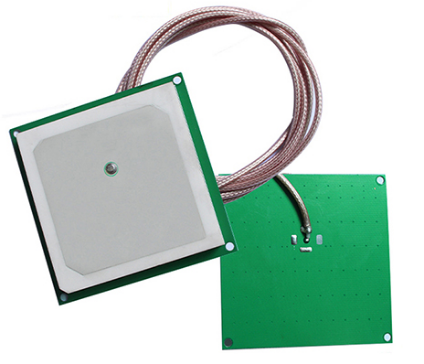

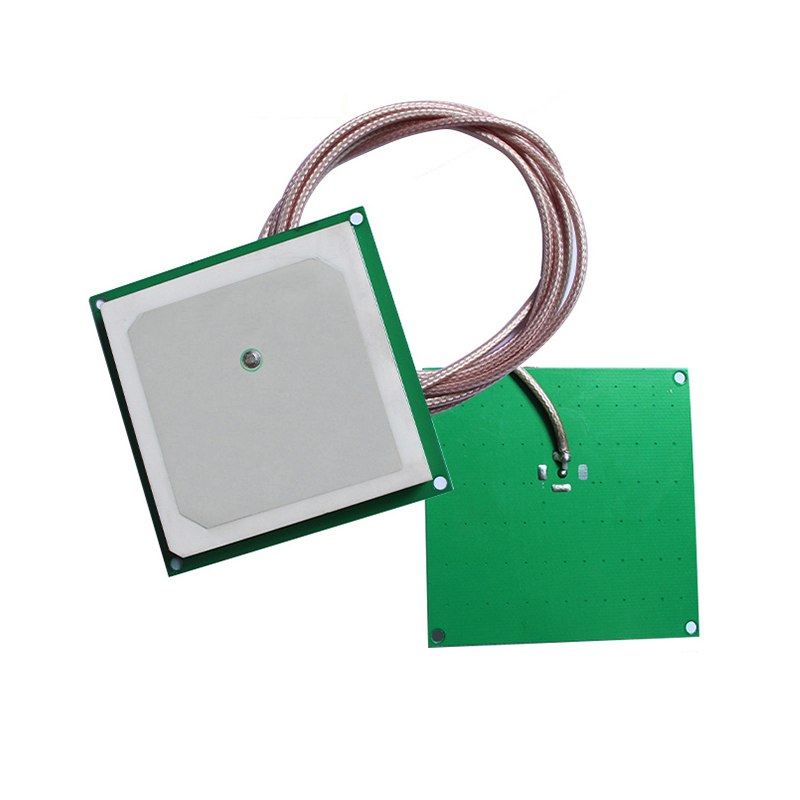

Details display
Related Products
|
Image |
|
|
|
|
Model |
CF-RA4040 |
CF-RA6161 |
CF-RA8080 |
|
Gain |
2dBi |
4dBi |
5dBi |
|
Polarization |
Linear polarization/circular polarization |
||
|
Ceramic Size |
40*40*4mm |
60*60*7mm |
80*80*5mm |
|
PCB Size |
50*50*1.5mm |
70*70*1.5mm |
120*120*1.5mm |
