CF6D1E Fast UHF E710 12dbi integrated reader
- Support password/mask mode, high security
- Relays can supply power and trigger external devices to work
- Support multiple language development, including C#, Delphi, Java, Python, VB, etc.
- Applications: vehicle management, asset anti-theft, weighing scales, animal management, personnel management, etc.
Product Specifications
|
CF6D1E PRIME UHF 12dbi Integrated reader |
|
|
Model definition |
CF6D1E: RS232, WG, relay, power port CF6D2E: RS232, WG, relay, power port, TCP/IP CF6D3E: RS232, WG, relay, power port, POE CF6D4E: RS232, WG, relay, power port, WIFI CF6D5E: RS232, WG, relay, power port, TCP/IP, WIFI |
|
Chip |
Impinj E710 chip |
|
Frequency |
902~928MHz（US）/865~868MHz(EU) |
|
Protocol |
ISO18000-6C(EPC GEN2) |
|
Built -in antenna |
12dbi linear antenna |
|
Read speed |
1100 tags/s |
|
Operating mode |
Active mode/Trigger mod/Answer mode（for optional） |
|
Special function |
Support Mask/Password mode |
|
RF power |
Max 33dbm(adjustable） |
|
Reading distance |
0~15M（depends on tag and work environment） |
|
Communication Interface |
Standard interface：RS232/WG26/Relay Optional interface：TCP/IP/POE/WIFI Customized interface：USB/TTL/RS485 |
|
Operating Voltage |
9-24V（12V 2A power adapter） |
|
Reader material |
Die-cast aluminum，IP65 protection level |
|
Reader Specifications |
Size：41.5*41.5*6.7cm / Weight：3.1kg |
|
Single packaging specification |
Size：630*500*130mm/ Weight：5kg |
|
Standard box packaging specification |
10pcs/carton；Size：63*53*60cm / Weight：25.5KG |
|
Operating temperature |
-10~+55℃ |
|
Storage temperature |
-20~+75℃ |
|
WIFI (optional) |
|
|
Frequency range |
2.4G-2.5G(2400M~2483.5M) |
|
Transmit power |
802.11b:+20dBm 802.11g:+17dBm 802.11n:+14dBm |
|
Receiver sensitivity |
802.11b:-91dBm(11Mbps) 802.11g:-75dBm(54Mbps) 802.11n:-72dBm(MCS7) |
|
Security Mechanism |
WPA/WPA2 |
|
Network Protocol |
IPv4、TCP/UDP |
|
User Configuration |
Web |
Product parameters
|
CF6D1E PRIME UHF 12dbi Integrated reader |
|
|
Model definition |
CF6D1E: RS232, WG, relay, power port CF6D2E: RS232, WG, relay, power port, TCP/IP CF6D3E: RS232, WG, relay, power port, POE CF6D4E: RS232, WG, relay, power port, WIFI CF6D5E: RS232, WG, relay, power port, TCP/IP, WIFI |
|
Chip |
Impinj E710 chip |
|
Frequency |
902~928MHz（US）/865~868MHz(EU) |
|
Protocol |
ISO18000-6C(EPC GEN2) |
|
Built -in antenna |
12dbi linear antenna |
|
1100 tags/s |
|
|
Operating mode |
Active mode/Trigger mod/Answer mode（for optional） |
|
Special function |
Support Mask/Password mode |
|
RF power |
Max 33dbm(adjustable） |
|
Reading distance |
0~15M（depends on tag and work environment） |
|
Communication Interface |
Standard interface：RS232/WG26/Relay Optional interface：TCP/IP/POE/WIFI Customized interface：USB/TTL/RS485 |
|
Operating Voltage |
9-24V（12V 2A power adapter） |
|
Reader material |
Die-cast aluminum，IP65 protection level |
|

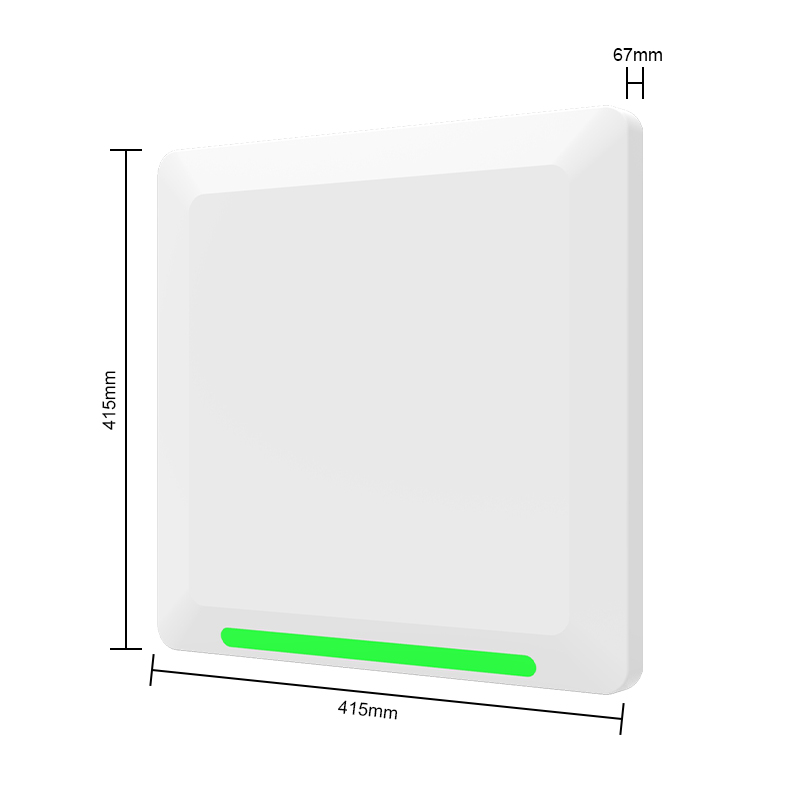

Reader Specifications |
Size：41.5*41.5*6.7cm / Weight：3.1kg |
|
Single packaging specification |
Size：630*500*130mm/ Weight：5kg |
|
Standard box packaging specification |
10pcs/carton；Size：63*53*60cm / Weight：25.5KG |
|
Operating temperature |
-10~+55℃ |
|
Storage temperature |
-20~+75℃ |
Details display
|
Standard interface wiring definition |
|||||||||||
|
Power |
RS232 |
WG |
Relay |
||||||||
|
12V |
GND |
TX |
RX |
GND |
D0 |
D1 |
GND |
TGIN |
NO |
NC |
COM |
|
Red |
black |
Light green |
yellow |
pink |
green |
White |
brown |
blue |
Purple |
orange |
grey |
|
Model Definition |
|
|
Model |
Interface |
|
CF6D1E |
RS232,Wiegand, relay, power port |
|
CF6D2E |
RS232, Wiegand, relay, power port, TCP/IP |
|
CF6D3E |
RS232, Wiegand, relay, power port, POE |
|
CF6D4E |
RS232,Wiegand, relay, power port, WIFI |
|
CF6D5E |
RS232, Wiegand, relay, power port, TCP/IP, WIFI |
